Lucity Renumber

renumber

The renumber tool allows you to renumber any feature linked to Lucity that isn't covered by the Sewer Renumber, Storm Renumber, Street Renumber, or Water Renumber tools.

How To Renumber a Feature:

  1. Start an edit session in ArcMap.
  2. Select a feature in the map.
  3. Click the renumber tool on the Lucity GIS Edit toolbar.
  4. The Renumber tool requires the system to save edits before and after renumbering the asset. Therefore, messages similar to the following will appear:

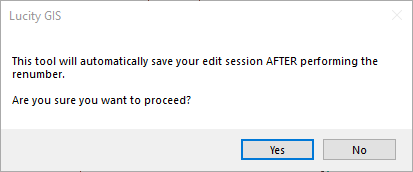

    SW_Renumber message

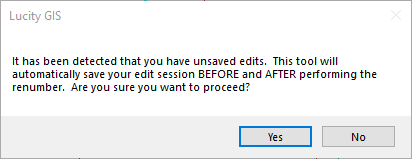

    SM_Merge Message

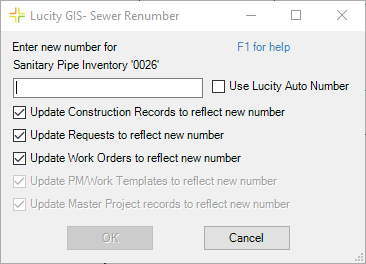

  5. Click Yes. The following dialog appears:

    renumber

  6. Enter a new number or check the Use Lucity Auto Number box if the layer has a number generator configured and you would like the number to generate automatically.
  7. If any of the listed records types should not be updated with the new number uncheck the appropriate box.
  8. Click OK. The following message appears when the process is finished:

    SW_Renumber successful

  9. The feature's Facility ID is updated as well as any related features.
