Lucity Renumber

renumber

The renumber tool allows you to renumber any feature linked to Lucity that isn't covered by the Sewer Renumber, Storm Renumber, Street Renumber, or Water Renumber tools.

How To Renumber a Feature:

  1. Start an edit session in ArcMap.
  2. Select a feature in the map.
  3. Click the renumber tool on the Lucity GIS Edit toolbar.

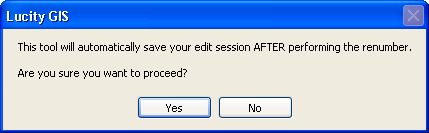

  4. The Renumber tool requires the system to save edits before and after renumbering the asset. Therefore, a message similar to the following appears:

    SW_Renumber message

    SM_Merge Message

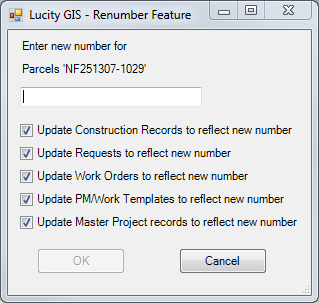

  5. Click Yes. The following dialog appears:

    renumber

  6. Enter a new number and click OK. The following message appears when the process is finished:

    SW_Renumber successful

  7. The feature's Facility ID is updated as well as any related features.
