Renumber Water Feature

Water Renumber IconThe Water Renumber tool, found on the Lucity GIS Edit toolbar, provides a means for renumbering Water structures. This tool is enabled only when a single feature is selected in the map.

How To Renumber a Feature

  1. Start an edit session in ArcMap.
  2. Select a Water feature in the map.
  3. Click the Water Renumber tool on the Lucity GIS Edit toolbar.

    Water Renumber

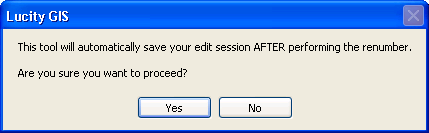

  4. The Water Renumber tool requires the system to save edits before and after the feature is renumbered. Therefore, a message similar one of these appears:

    SW_Renumber message

    SM_Merge Message

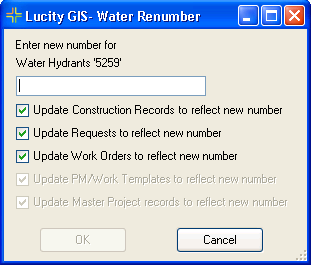

  5. Click Yes. The Water Renumber dialog appears:

    Water Renumber menu

  6. Enter the new number and select OK. A confirmation message appears when the process is complete.

    SW_Renumber successful
