Renumber Street Feature

The Lucity GIS Edit toolbar includes a Street Feature Renumber tool that enables users to renumber street assets. Because Lucity identifies such assets by Facility ID, users must use this special tool to renumber a Street Segment, Intersection, Structure, Pole, or Light in the map and in the Lucity database.

Note: The Street Feature Renumber tool is only enabled if a single feature is selected in the map.

Supported Modules

• Bridges
• ITS Anti-Icing Equipment
• ITS Anti-Icing Pump Houses
• ITS Automated Gates
• ITS Camera Location
• ITS Dynamic Message Sign
• ITS Kiosk
• ITS Portable Dynamic Message Sign
• ITS Sensor
• ITS Weather Station
• Mast Arms
• ROW Bus Stops
• ROW Curbs
• ROW Fences
• ROW Guardrails
• ROW Medians
• ROW Pavement Markings
• ROW Railroad Crossings
• ROW Sidewalks
• ROW Steps
• ROW Walls
• Sign Inventory
• Signal Controllers
• Signal Heads
• Auxiliary Equipment
• Cabinets
• Conductors
• Conduits
• Fiberoptic
• Furniture
• Intersections
• Junction Boxes
• Landscape Areas
• Lights
• Light Circuits
• Light Controllers
• Main Lines
• Meter Boxes
• Parking Lot
• Parking Stalls
• Poles
• Preempt Signals
• Ramp
• Road
• Road Asset
• Road Attribute
• Road Ramp
• Road Segment
• Signals
• Snowshoes
• Street Segments
• Structures
• Traffic Detectors
• Trails

How To Renumber a Feature

1. Start an edit session in ArcMap.
2. Select a Street Feature in the map.

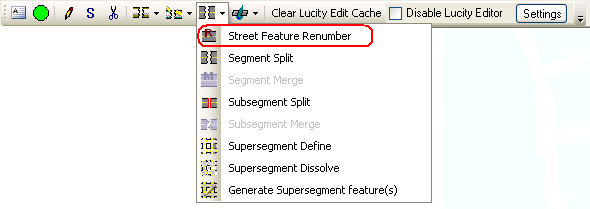

3. Click the Street Feature Renumber tool on the Lucity GIS Edit toolbar.



4. The Street Feature Renumber tool requires the system to save edits before and after the feature is renumbered. Therefore, a message similar one of these appears:

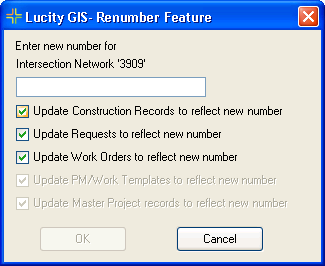

5. Click Yes. The following dialog appears:



6. Enter the new ID number and select OK. The following message appears when the process is complete:



   The feature's Facility ID is updated, as well as any related features. For example, if the feature is an Intersection, the Intersection Number will change in the geodatabase and in Lucity. If that Intersection is attached to Street Segments, those Segments will be updated, as well.
