Identify Features

The Identify tool allows users to quickly see all the attribute information about a specific feature in the map. It also shows documents attached to features in the map.

Note: Some features might have the Identify tool disabled depending on settings controlled by the system admin.

How To Identify an asset

1. Click , and then click on a feature in the map.
2. The tool will identify everything at the location that you clicked and display the first feature.
3. To switch which feature's attributes you are looking at use the dropdown at the top of the pop-up to select another feature.

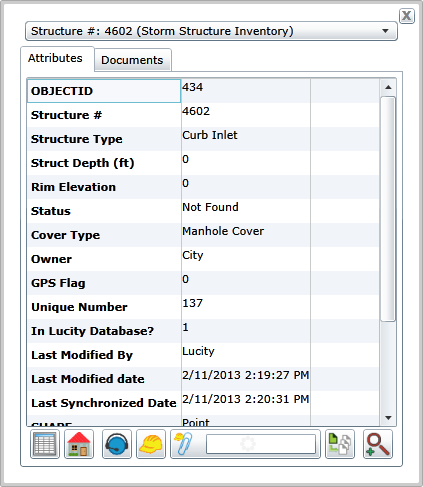

4. The Attributes tab will be filled out with the fields and attributes of the asset



5. At the bottom of the Attributes tab several of the Lucity tools from the Data Table appear. These only work if the asset being identified is a Lucity asset and when run from this location they only apply to one asset at a time.

   View Relationships

   Property Viewer

   Create Request

   Create Work Order

   Attach to Work Order

   Create PM/Template

   Create Inspections

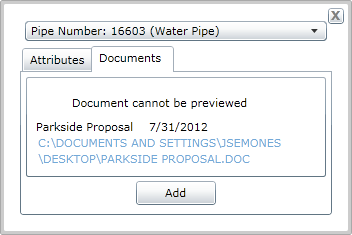

6. The Documents tab shows any documents attached to the asset and allows users to add new ones. For more information on documents go here.



7. When complete close the Identify window.
