The Property Viewer provides a list of records from many lucity modules that are related to the current asset based on the address.
Notes
If an arrow disappears and a section doesn't expand, there are no related records under that section
The Recents section displays a collection of modules that are address-centric. The relationships under this are limited to the last years' worth of data and are ordered by date.
When the tool is searching a work order to see if it contains related addresses it searches through all the Location records for the work order.
When the tool is launched from a work order it looks for relationships to the first record in that work order's location grid.
How To View Related Records
Click the Property Viewer button .

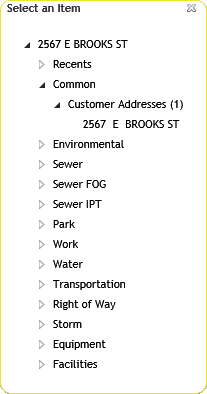

The tool will take the address entered on the current module and the following pop-up will appear with the address.
Click on the arrow button to expand the list of relationships for the address. Then continue to expand sections until the desired module is expanded.
.
