Module Navigation

After users open the Lucity Web application and view their Dashboard, they usually want to open a module to see more detailed information. Once a module is open this more detailed information is displayed in Views, Grids and Forms which let users quickly see sets of data, then view or edit individual records.

View

Views control how data is structured or displayed on screen. A View can either show all of the records in a single module or a limited set of records for a module, based on a filter. Views are launched as Application tabs and can be opened from the new tab dialog folder or collapse - from a Dashboard plugin.

Each View contains one or more grids.

Forms may be attached to Views to allow users to open individual records for more detailed information.

Grids

Grids display a list of records from the module for which the view has been built. Each record displays a set of general information (customized by system administrators). If a record contains child records, the record can be expanded to display the grid of related child records. Attached to each grid is a toolbar that enables users to perform different operations.

Example: A parent Work Order grid may contain child Resources, Tasks, and Tracking grids.

Forms

Forms display individual records and can be customized (by system administrators) to let users see record details or to edit a record. Forms can be launched from a grid or a menu, depending on system settings.

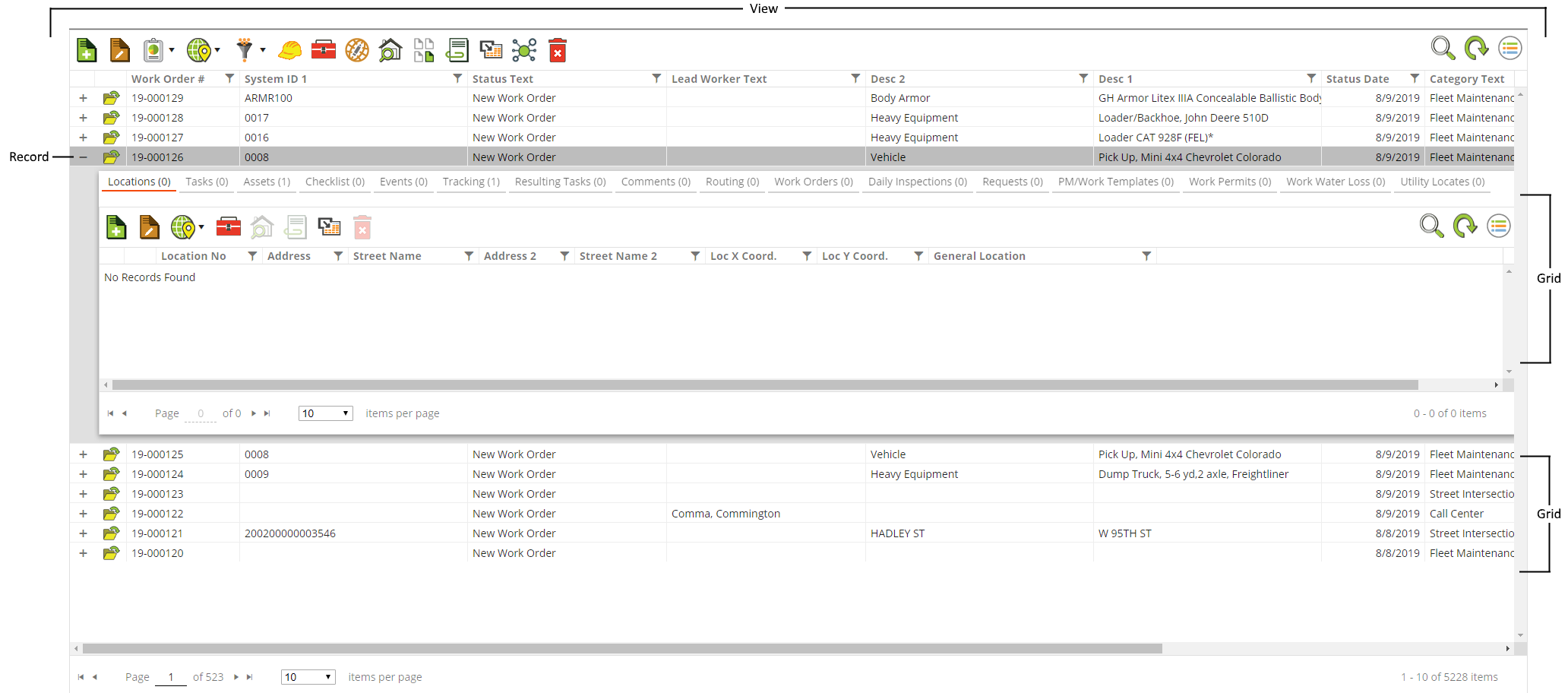

Module Sample

Sample gbaMS Web

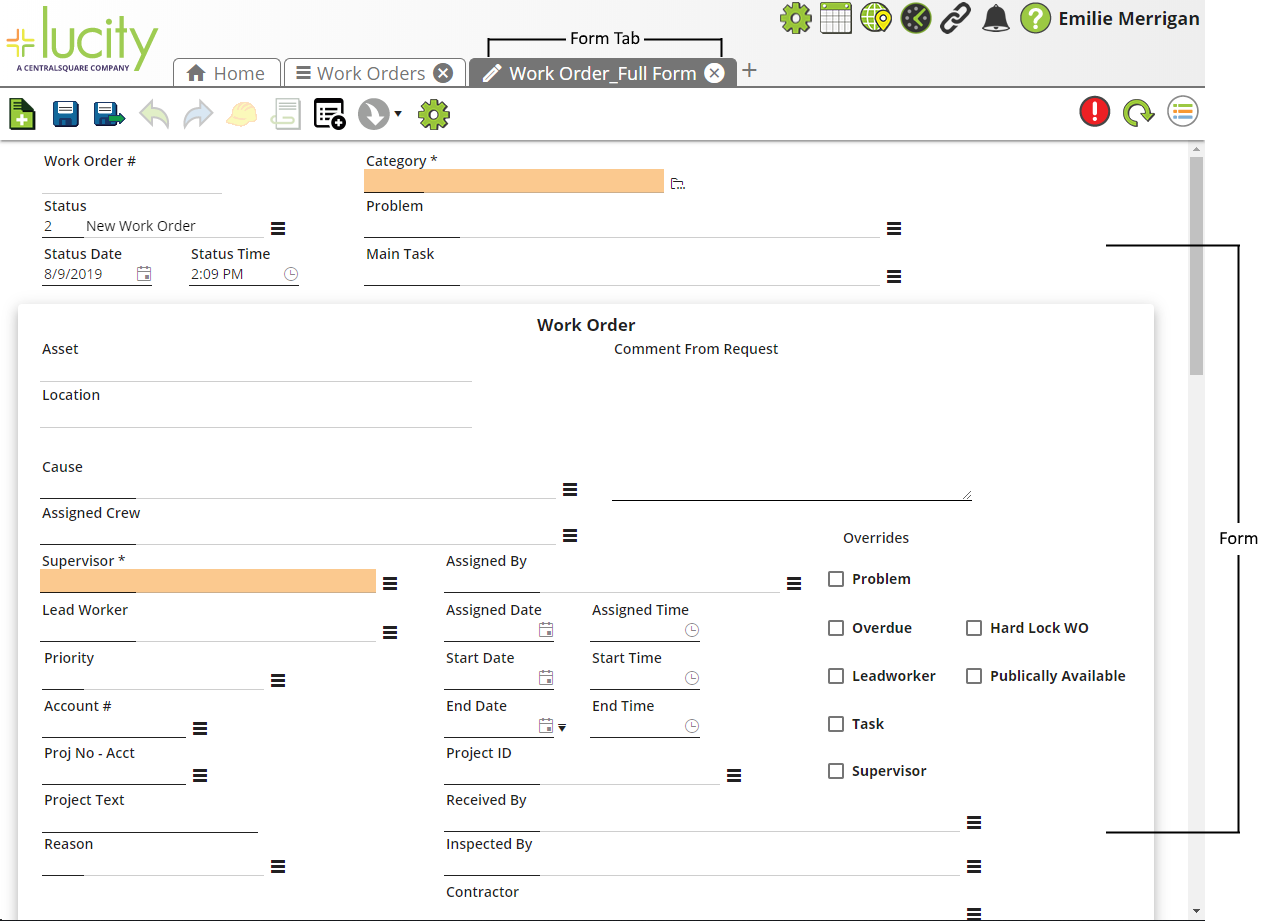

Form Sample

sample lucity web form
