Split Street Subsegments

The Lucity GIS Edit toolbar includes a Subsegment Split tool used to divide Street Subsegment features.

To make the change properly in the geodatabase and in Lucity Desktop, users must use the Lucity tool to perform the split, rather than the ESRI split tool. The tool is enabled only when: 1) one feature is selected in the map, and 2) that feature is linear.

How To Split a Street Subsegment in the Map

1. Start an edit session in ArcMap.
2. Select a Street Subsegment in the map.

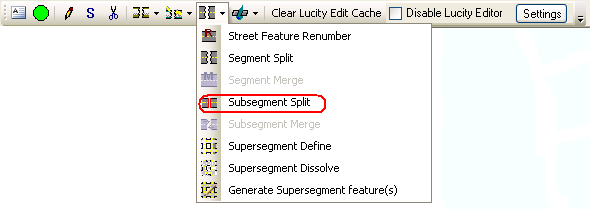

3. Click the Subsegment Split tool on the Lucity GIS Edit toolbar.



4. The Subsegment Split tool requires the system to save edits before and after performing the split. At the same time, the Street Segment associated with the selected Subsegment is synced to Lucity Desktop. When one of the following prompts appears, click Yes.

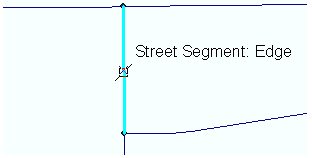

5. Using the mouse, click on the position on the Subsegment line at which the split should occur.

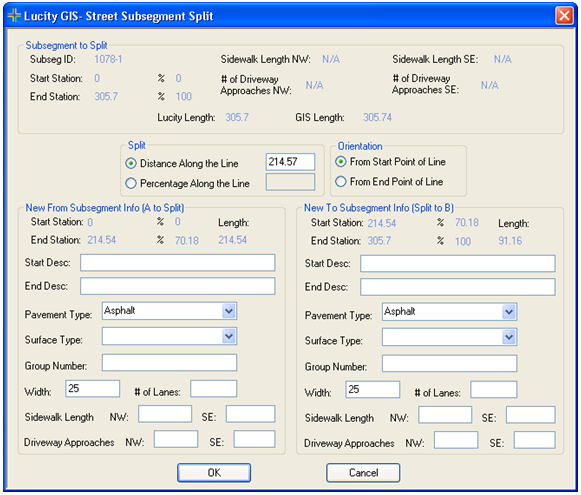

6. The Street Subsegment Split form appears. The section at the top of the form displays information about the existing Subsegment.



   The Split field displays the location of the split (where the mouse click occurred) as measured as a Distance from a point or as a Percentage along the line. (This value can be overwritten.) The Orientation field indicates the direction from which the split location is measured—from the Start Point or the End Point of the line.

7. New From Subsegment Info (Optional): The data in these fields are automatically populated based upon information for the existing subsegment. Users can manually change this data.
   • The Sidewalk Length and Driveway Approach fields are calculated as:

     [(Old Sidewalk Length)/(Old Subsegment Length)] x New Subsegment Length

8. New To Subsegment Info (Optional): The data in these fields are automatically populated based upon information for the existing subsegment. Users can manually change this data.
   • The Sidewalk Length and Driveway Approach fields are calculated as:

     [(Old Sidewalk Length)/(Old Subsegment Length)] x New Subsegment Length

9. After making all selections, click OK. The following message appears when the process is complete:
