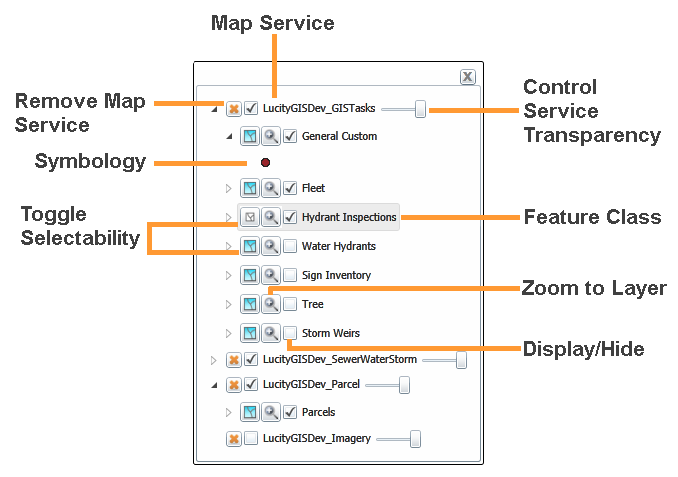

The Map Layers tool allows users to: turn feature classes off and on, control selectability, and control layer transparency.
Remove Map Service |
Click this to remove the map service and all associated feature classes. This is only for the current user, and only lasts for the current map session. |
Control Service Transparency |
Controls the transparency of all layers within a map service. |
Toggle Selectability |
Click this button to toggle selectability. When this button is blue the layer is selectable. |
Zoom to Layer |
Zooms the map to the full extent for the selected layer. |
Display/Hide |
Uncheck the box next to a service, group or feature class to hide it in the map. Note: some layers will be turned off in the map by default. |
