Log
|
Click on this tool to bring up a selection of troubleshooting tools. Select a tool from the list and click OK to open it.

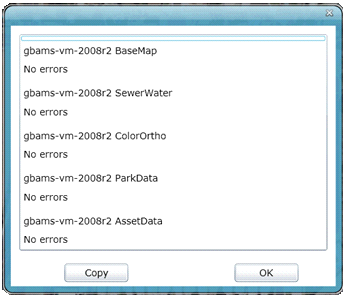

Local Log - Click on this button to bring up a log for the web map.
View Layer Details - Right-click for a dropdown menu with the option to view layer details. This will show the map services displayed in this map, and which layers are linked back to Lucity.
|

|

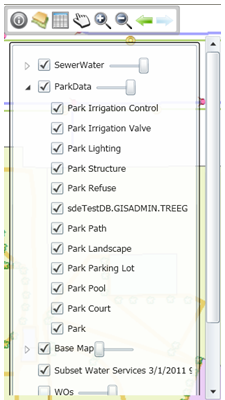

Map Layers
|
This allows users to: turn feature classes off and on, control selectability, and control layer transparency.
|

|

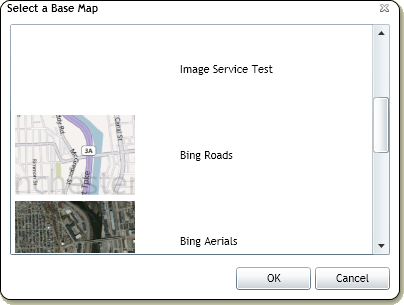

Base Map
|
Provides a list of base maps to choose from. Only one base map can be viewed at a time.
|

|
Data Table
|
The data table shows a table view of all records that have been selected. It has several tools to help when selecting records, and special tools to relate asset records back to Lucity.
|

|
Display Preferences
|
This allows users to change the following options.
Main Selection Color - the color of selected features.
Secondary Selection Color - The color features that have been selected from a selection.
Automatically revert to pan after select - After using the Select tool the map automatically switches back to the Pan tool.
|

|
Pan
|
This allows users to pan around the map. If no other tool is selected this one is selected by default.
|

|
Zoom In
|
This allows users to zoom in. Select the tool then click on the map to zoom in. Users can also click in the map and drag the cursor to form a box. Click again to finish the box and zoom.
|

|
Zoom Out
|
This allows users to zoom out. Select the tool then click on the map to zoom out. Users can also click in the map and drag the cursor to form a box. Click again to finish the box and zoom.
|

|
Return to the Previous Extent
|
Cycles backwards through previous map extents
|

|
Return to Next Map View
|
Cycles forward through previous map extents
|
