The Assets tab records which sewer inventory assets were involved in the overflow. It contains three grids which store related pipes, structures, and service laterals. The pipes grid allows users to create a work order based on a pipe the sewer overflow.
Sewer Overflow Pipes grid
A sample of the grid appears below. Sort records in the grid by clicking on the headings. An up or down arrow (highlighted in orange below) will appear signifying ascending or descending order.
Right - click in the grid to add a record
Right - click on an existing record to get a menu with options to View Record, Add Record, Edit Record, Delete Record, Create New Work Order, or Create New Request.
Right click on a pipe in the grid and select Create New Work Order.

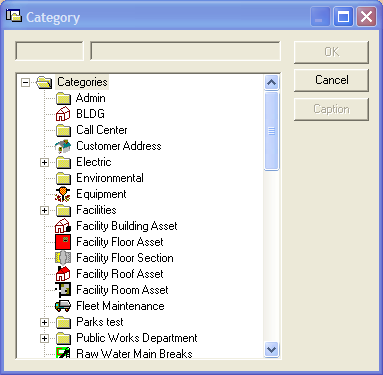

The following popup will appear allowing the user to select a Work Category:
Select a Sewer Pipe category and click OK.
The work order will be created and the following pop up will appear allowing the user to go to the work order or go back:
Create a New Request
Sewer Overflow Structures grid
A sample of the grid appears below. Sort records in the grid by clicking on the headings. An up or down arrow (highlighted in orange below) will appear signifying ascending or descending order.
Right - click in the grid to add a record
Right - click on an existing record to get a menu with options to View Record, Add Record, Edit Record, or Delete Record.

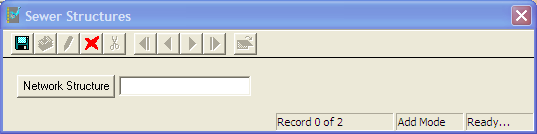

Right click in the grid and select Add Record. The following popup will appear:
Enter the Network Structure id.
Click on the caption button or click in the field and push F9 to make a list of structures appear.
Save and Close the record.

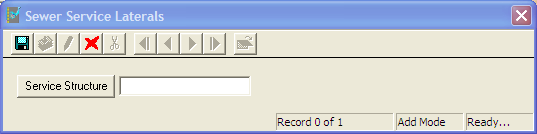

Sewer Overflow Service Laterals grid
A sample of the grid appears below. Sort records in the grid by clicking on the headings. An up or down arrow (highlighted in orange below) will appear signifying ascending or descending order.
Right - click in the grid to add a record
Right - click on an existing record to get a menu with options to View Record, Add Record, Edit Record, or Delete Record.

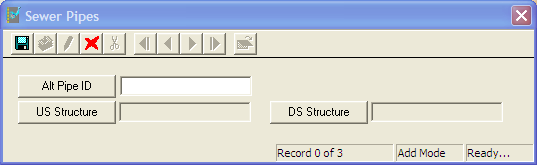

Add a Pipe
