2019r2 Release Notes

System Requirement Changes

• All of Lucity's web applications now require .NET Framework 4.8

Web

General Web Changes

• Lucity Web application has been updated with modern material design. This provides a cleaner interface and increased application speed.

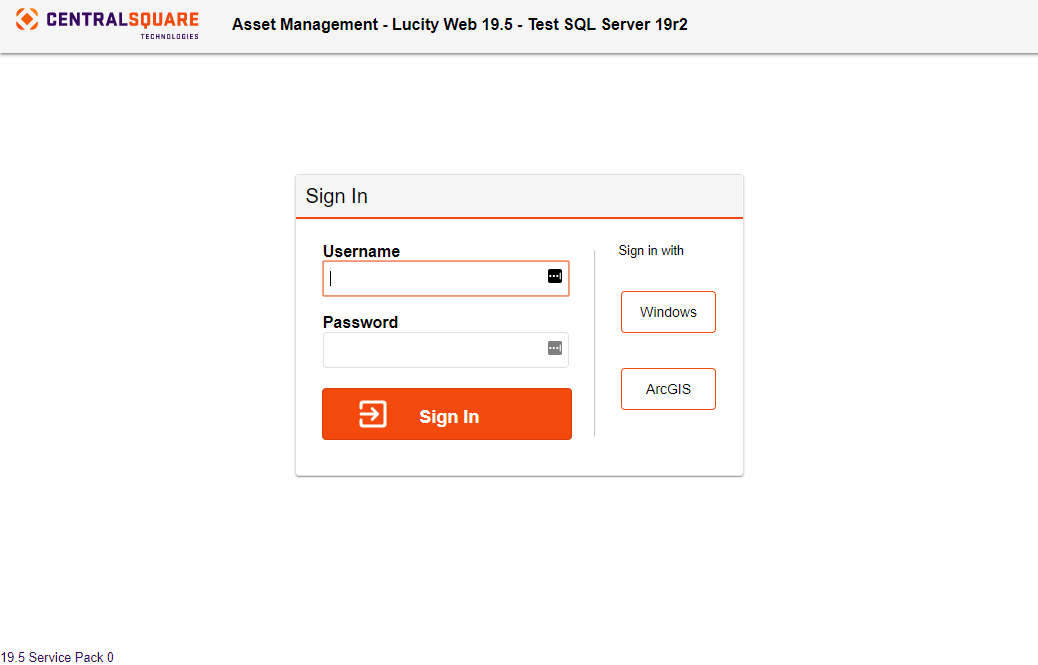

  Login

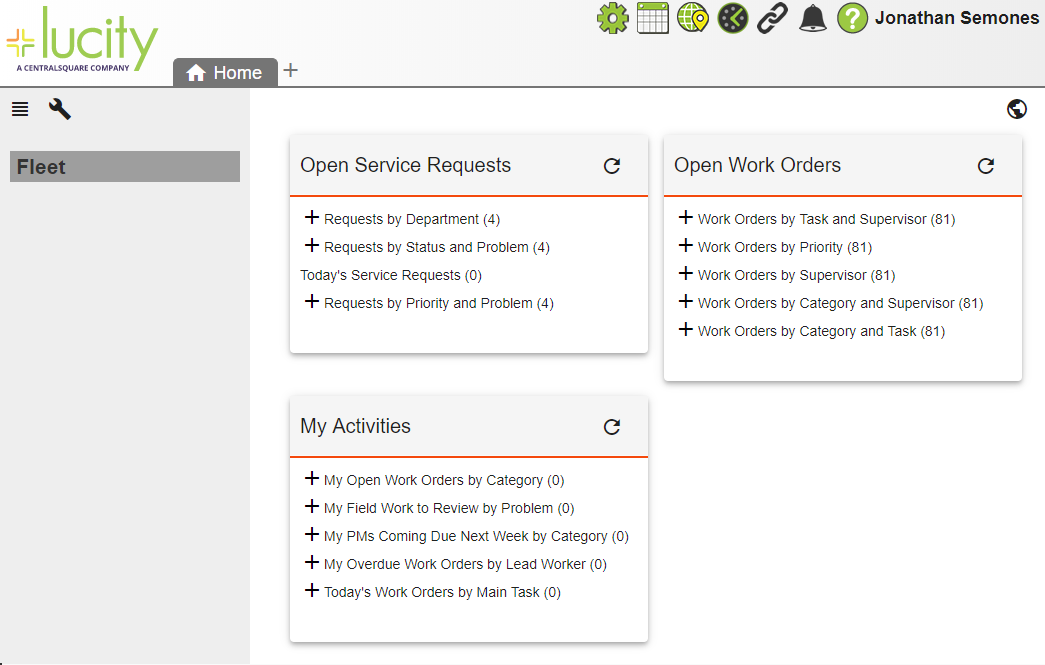

  Dashboard

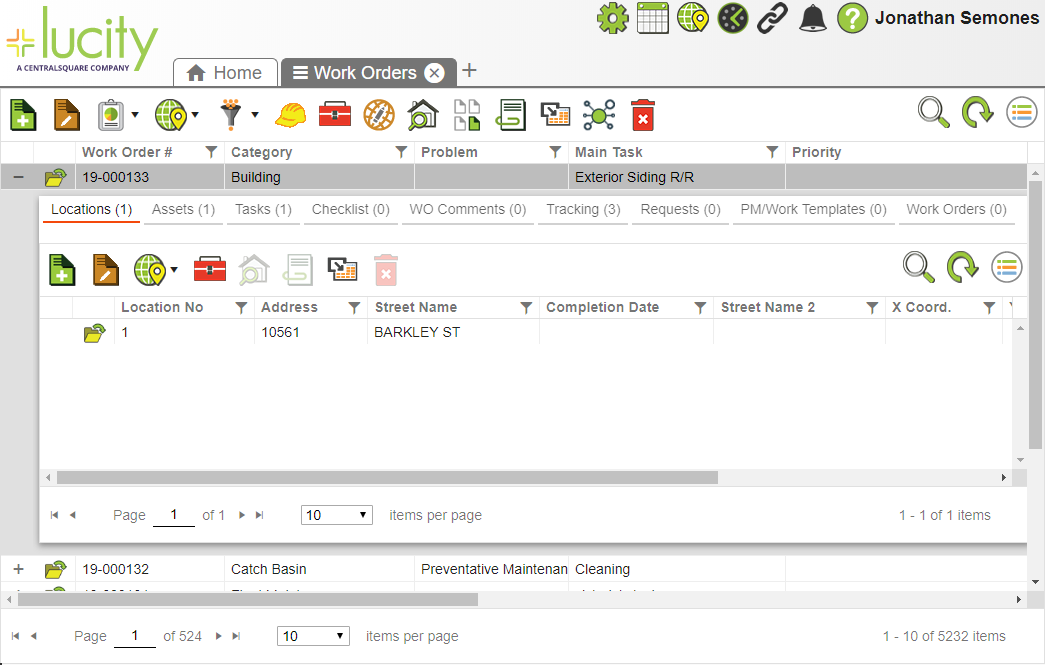

  Module

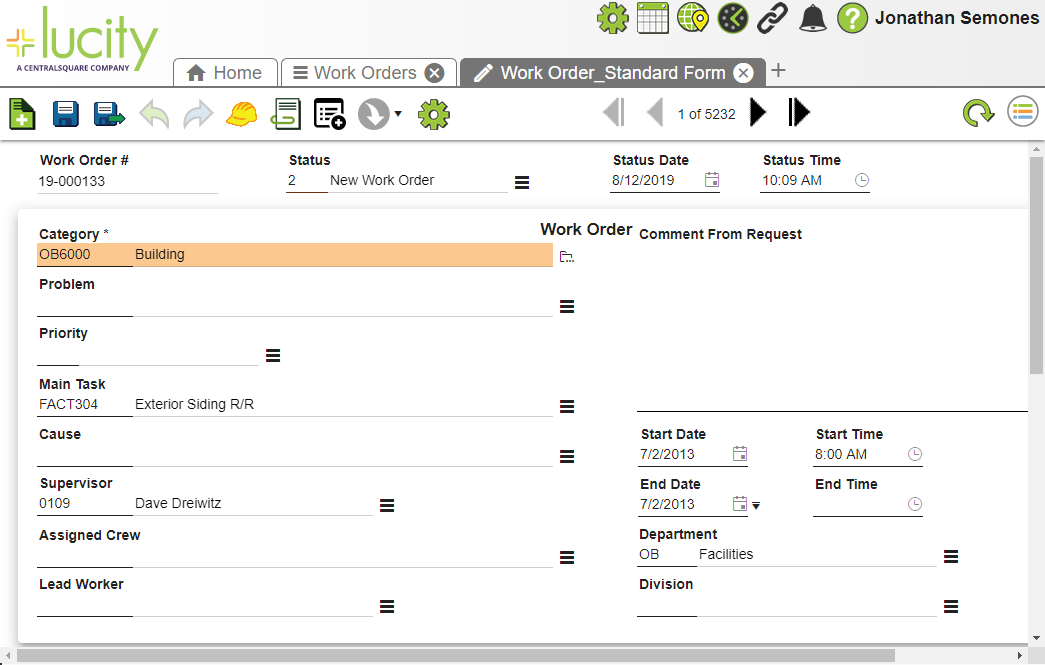

  Form



• A side effect of this is that the color scheme can no longer be modified.
• If Lucity Web is using an NPR (Non-production/Test) License, it will display a message at the top of the application. This will help make test systems more identifiable even though the colors cannot be changed.
• The upgrade process is improved so that users generally do not need to clear browser caches after applying upgrades or service packs.
• Font scaling now works across most of the web application for scaling up and down fonts, including forms.
  • During the upgrade all users' fonts sizes are reset to 14.  This font is slightly larger than the previous default Lucity font and may, in some cases, require that fields on forms be shifted to the right to prevent overlap.
• Increases the vertical spacing between fields on all existing forms by 10% to make the new field display more readable. This pulls the field caption down away from the field immediately above.
  • All forms are automatically adjusted, and all template forms we provide with the Lucity 2019r2 release have also been adjusted to increase spacing.
  • If you have custom forms that have been exported to XML, you may want to re-export your forms from the upgraded Lucity forms so that your forms also have increased vertical spacing.

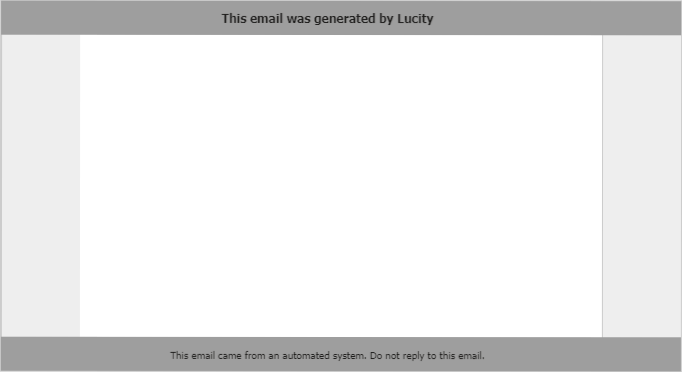

• Lucity emails now have a more subdued header and footer.



Dashboard

• Dashboard reorder - Temporarily remove the drag and drop function (the ability to drag tabs, plug-ins and frames around in design mode). This will be added again later. In the meantime, you can manually change the order using the Sequence in... field when editing the dashboard object.

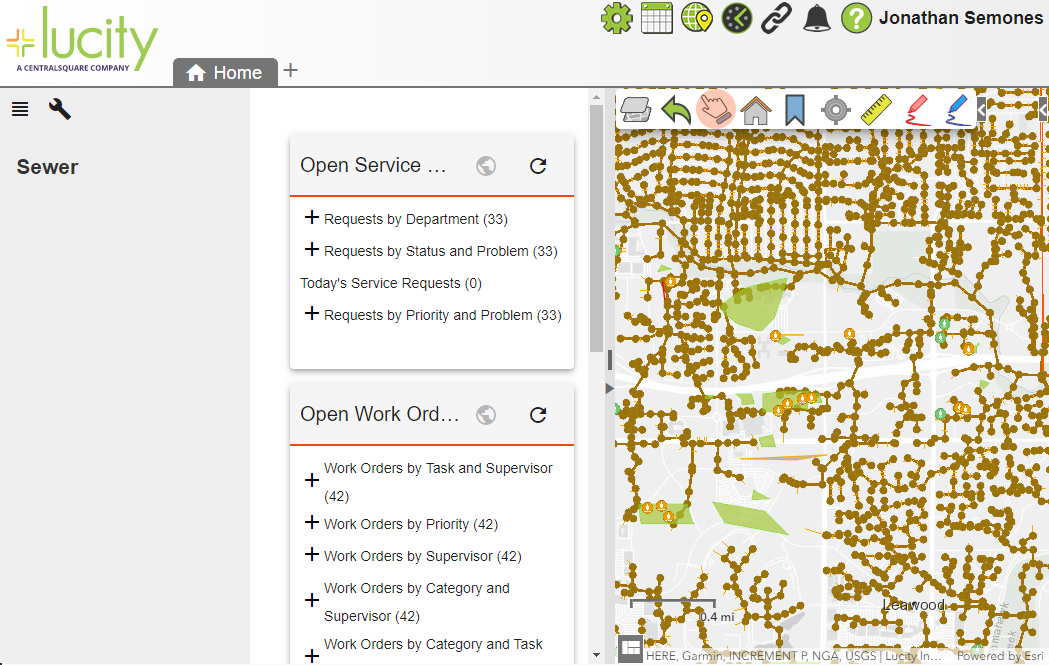

• Dashboard/Webmap Split-screen - Adds the ability to display your default web map side by side with the dashboard.
  • You can select items on the dashboard and have their location show in the map.
  • The system will remember whether the map was open last time or not.
  • All web map tools are available in dashboard/web map split screen.



Module Tools

• Relationship Tool
  • Shows the relationship to the Building module for the following modules:
    • Water Storage Facilities > Building
    • Water Vaults and Structures > Building
    • Water Supply Sources > Building
    • Raw Water Storage Facilities > Building
    • Raw Water Supply Sources > Building
    • Raw Water Vaults > Building
    • Recycled Water Storage Facilities > Building
    • Recycled Water Supply Sources > Building
    • Recycled Water Vaults > Building
  • Shows the relationship from the Building module to the following modules:
    • Building > Water Storage Facilities
    • Building > Water Vaults and Structures
    • Building > Water Supply Sources
    • Building > Raw Water Storage Facilities
    • Building > Raw Water Supply Sources
    • Building > Raw Water Vaults
    • Building > Recycled Water Storage Facilities
    • Building > Recycled Water Supply Sources
    • Building > Recycled Water Vaults
  • Shows the relationship to the Pavement module for the following modules:
    • Rehab per Pavement/Classifications > Pavement Rehab Techniques
    • Rehab per Pavement/Classifications > Pavement Standards
    • Pavement Rehab Techniques > Rehab per Pavement/Classifications
    • Pavement Standards > Rehab Per Pavement > Classifications
    • Pavement Modeling Results Segments > Pavement Models
    • Pavement Modeling Results Segments > Road Segments
    • Pavement Modeling Results Segments > Super Segments
    • Models > Modeling Year End Summary Results
    • Models > Pavement Budgets
    • Models > Pavement Miscellaneous Costs
    • Models > Pavement Modeling Results Segments
    • Models > Pavement Modeling Results Subsegments
    • Models > Planning Table Supersegment
    • Planning Table Supersegment > Pavement Models
    • Planning Table Supersegment > Super Segments
    • Pavement Budgets > Pavement Models
    • Year-End Results (Modeling Year End Summary Results > Pavement Models
  • Shows the relationship to the Water Loss module for the following modules:
    • Water Hydrant Flow Tests > Water Loss
    • Water Storage Facility Inspections > Water Loss
    • Water Supply Source Inspections > Water Loss
    • Water Main breaks > Water Loss
    • Work Water Loss > Water Loss
    • Water Flushing History via Additional Flushing Dates > Water Loss
    • Water Flushing History via Flushing Hydrants > Water Loss
    • Direct Hydrant Flushing > Water Loss
  • Shows the relationship from the Water Loss module for the following modules:
    • Water Loss > Water Hydrant Flow Tests
    • Water Loss > Water Storage Facility Inspections
    • Water Loss > Water Supply Source Inspections
    • Water Loss > Water Main breaks
    • Water Loss > Work Water Loss
    • Water Loss > Water Flushing History Additional Flushing Dates
    • Water Loss > Water Flushing History Hydrants
    • Water Loss > Direct Hydrant Flushing
  • All asset modules now show a relationship to the Project module.

Web Map

General

• Upgraded the Web Map to use Esri Javascript 4.11.

Dashboard/Web Map Split Screen

• The Lucity Web Map can now be displayed in split screen with the Dashboard. This enables users to interact with their web map and the dashboard at the same time.
• Items selected on the dashboard can be displayed on the web map.
• The application will remember the layout and reopen the application to have the same dashboard/web map layout.
• The split screen map includes all of the web map tools.

Find Address tool

The Esri World Geocoding Service is no longer included in the Lucity Web system by default. Only geocoders configured in the Lucity Administration tool will be listed.

Editing Tools

Adds GIS Editing Tools back to Lucity Web. This enables users to add and edit features directly in the Lucity Web Map.

Module Enhancements

Important: Lucity desktop is no longer being updated with new enhancements. All of these module changes are in Lucity Web.

General Inventory Module Changes

• All asset modules now show a relationship to the Project module.
• All asset modules that store X/Y information can now store Z coordinates.

General

• Easements - Adds fields for storing the Street addresses.

Plant/Equipment

• Equipment Inventory
  • Equipment ID - Increased to hold 25 characters.
  • Roof Rec # - New field to link equipment to a record in Facility Roof Inventory.

Environmental Compliance

• Storm BMP
  • Site Contacts - Adds more Custom fields
• Storm BMP Site
  • Conversations - Adds Custom tab with additional Picklist, Date, Numeric, Free form text fields. None of the user custom fields are designed to transfer data from Storm BMP Conversations to Requests or Work Orders.

Facilities

• Building Inventory - Adds the ability to display the following child grids.
  • Facility Rooms - Displays rooms linked to the Building record.
  • Facility Furnishings - Displays rooms linked to the Building record.
  • Facility Permits - Displays rooms linked to the Building record.
  • Facility Doors - Displays rooms linked to the Building record.
  • Facility Utilities - Displays rooms linked to the Building record.
• Facility Building Assessment Library - User defined fields 1 – 15 in Facility Building Assessment Library were previously incorrectly shared to Facility Building Inventory. The picklists are now correctly shared with the Facility Building Assessment module instead. Your picklists and button captions will be lost for these fields in Facility Building Assessment Library, Facility Building Assessments, and Facility Building Inventory.

  Note: Please contact Lucity Support if you need help preparing for these changes.

Fleet

• Fleet Inspections - Adds more Custom fields.

System Configuration

• Notification Setup
  • Notification Report - Adds a new field to define a report that will be attached to the email notification. When the notification is sent, the report is run against the current record and attached as a PDF to the notification. This also allows reports to be sent to a printer via email.

Sewer

• Sewer Pipes - Adds more Custom fields.

Storm

• Storm Conduit - Adds more custom fields.

Transportation

• ITS Communications
  • Action History Grid > Change Services Toolkit - Adds the IP Address field to the dialog.

Water

• Water Pipes - Adds more custom fields.
• Water Main Breaks - Adds more custom fields.
• Recycled Water Main Breaks - Adds more custom fields.
• Raw Water Main Breaks - Adds more custom fields.
• Field Changes
  • Material picklist
    • Raw Water and Recycled Water Main Breaks now use the picklist currently shared by the three Water Pipe modules.
    • Picklist values for the Material fields in Raw Water and Recycled Water Main Breaks will be lost during the upgrade.
  • Surface picklist
    • Raw Water and Recycled Water Main Breaks now use the picklist currently shared by the three Water Pipe modules.
    • Picklist values for the Surface fields in Raw Water and Recycled Water Main Breaks will be lost during the upgrade.
  • Pressure Zone
    • Raw Water Main Breaks, Raw Water Pipes and other Raw Water assets now share the same Pressure Zone pick list.
    • Recycled Water Main Breaks, Recycled Water Pipes and other Recycled Water assets now share the same Pressure Zone pick list.
    • Picklist values in the Pressure Zone fields, for all affected modules, will be lost during the upgrade.
  • System
    • Water Main Breaks, Water Pipes and other Distribution Water assets now share the same System pick list.
    • Raw Water Main Breaks, Raw Water Pipes and other Raw Water assets now share the same System pick list.
    • Recycled Water Main Breaks, Recycled Water Pipes and other Recycled Water assets now share the same System pick list.
    • Picklist values in the System fields, for all affected modules, will be lost during the upgrade.

      Note: Please contact Lucity Support if you need help preparing for these changes.

Warehouse Inventory

• Warehouse
  • Account # - New field that identifies the financial account assigned to the warehouse.
• Parts Inventory
  • Create Purchase Order | Selected Record(s) - New toolkit to create a purchase order to reorder parts that are below their reorder point.
  • Create Purchase Order toolkit - Updated to honor whether the Auto Generate PO Numbers work option is enabled. If this option is disabled users may manually populate a PO Number or leave the field blank for the system to automatically populate with the Purchase Order > Rec #.
  • Change Cost Method - New toolkit to provide better tracking and accountability when changing a part record's cost method. The Cost Method field can no longer be changed through the Parts form and must be changed through this toolkit. After this toolkit completes, the cost method will be changed for the part. A new part transaction record is also created that tracks the cost method change.
• Parts Vendors - Adds a child module for tracking additional contacts.
• Transactions
  • Asset Alt ID - Adds the employee ID/asset ID for Parts Issued transactions.
  • Asset Description - Adds a new description field for Parts Issued transactions.
• Part Purchase Orders
  • Status Codes - Standardized the list of Status Codes. Most important is that a Status Code of 1 now means New Purchase Order. This is hard coded and cannot be edited. In prior versions, Status Code of 1 meant Received and was editable. Any existing purchase order records with a status code of "1" will retain their old type value until changed by the user. We suggest proactively updating your purchase order records with a code of 1 to a new code. Important information about preparing for this change.

Work

• General Work Improvements
  • Block categories which have sub-categories - New work option which prevents users from selecting a Category in the Category Tree that has sub-categories. This helps by making sure that users do not select categories that were just added for organizational purposes.
  • Default Transaction Account Number from To Warehouse in Warehouse Transfer Tools - New work option which, when enabled, causes the Account Number field in Part Transfer toolkit dialogs will default with the destination warehouse's Account Number. Toolkits affected:
    • Warehouse Inventory > Warehouse to Warehouse Parts Transfer toolkit
    • Warehouse Inventory > Warehouse Location > Transfer Parts to Different Location toolkit
    • Parts Inventory > Inventory > Transfer Parts to Different Location toolkit
  • Type portion of the Employee, Equipment, Material, Contractor, and Fluid ID fields now support 100 characters wherever they are available.
• Employee Cert/Classes
  • Certifications > Employees grid - Adds more Custom fields.
• Material Requisition
  • Account # - New field that identifies the financial account paying for the parts on the requisition.
  • Project # - New field that identifies the project account that is tied to the material requisition.
  • Create Purchase Order | Selected Record toolkit - Updated to honor whether the Auto Generate PO Numbers work option is enabled. If this option is disabled users may manually populate a PO Number or leave the field blank for the system to automatically populate with the Purchase Order > Rec #.
• PM/Templates
  • PM/Template field - Now supports 25 characters wherever the field is located.
  • Tasks grid > Material Kits - New grid allows you to add Material Kits to the PM > Task record. This enable you to add groups of materials that are often used together and add estimates for how they are used.
• Project Management
  • Project Contracts - Adds more custom date and time fields.
• Work Flow Setup/Work Administration
  • Material Kit Setup - New module that enables you to group materials (including materials linked to Parts) into a kit so that the kit can be used on a Work Order or PM.
    • Let's you define a list of materials and units needed for a specific job.

    Note: If any of your users are still using Lucity Desktop to create Work Orders we recommend that you do not use Material Kits as it may cause data problems.

  • Task Setup
    • Material Kits - New child grid allows you to specify material kits for a specific task. You can define estimated units for the material kits. These material kits will be brought into the Work Order with the Task.
  • System Assembly Component - No longer requires that all fields (System, Assembly and Component) need to be populated.
• Work Orders
  • Adds more Custom number fields.
  • Assets
    • View Main Breaks for Asset | Selected Record - New toolkit that opens Water Main Break records associated with the selected Work Order Asset, eliminating the need to open the Water Main Breaks module.
    • Water Meter and AMR Toolkits - Adds a time field to these toolkits Ex. Completion Time, Effective Time, Installation Time.
  • Tasks
    • Material Kits - New child grid to show Material Kits used on the task.
      • Populate Dates and Units | Selected Record(s) - New toolkit allows you to enter the dates the Material Kit and the materials within it were used. The toolkit also allows you to define the Material Kit units used. This will automatically update the units in the material resources tied to the Material Kit.
      • Split Kit | Selected Records - New toolkit that allows you to separate the material resources from their material kit. This allows you to delete individual material resources, or change the units on individual material resources, that were brought into the work order from a material kit.

    Note: If any of your users are still using Lucity Desktop to create Work Orders we recommend that you do not use Material Kits as it may cause data problems.

  • Tasks > Material Resources
    • Add Part Warranty to Vehicle - Toolkit no longer requires the resource to have an End Date specified or warranty information to be defined in the Material Setup record.
• Work Requests
  • Adds more WO Custom fields. These are fields that are shared between Work Orders and Requests and transfer the data from the Request to the Work Order.

GIS

Geocoding Changes

• Usage of the Esri World Geocoding Service will require utilization of service credits in the following situations:
  • Geocoded addresses processed by the Lucity Spatial Indexer
  • Reverse geocoded spatial relates processed by Lucity GIS Scheduled Tasks.

GIS Tasks

• Work Requests Tasks
  • Now has the ability to import comments. Records from the feature class comment grid are inserted into the comment grid for the given Lucity record.
  • When syncing requests from Lucity to GIS the system now supports using translating picklist options in Lucity to the correct domain options in GIS using the GIS Code field in the Domain Configuration tool.

ArcGIS Pro

• Requires Arc Pro 2.4
• Find Feature - New tool to quickly find an asset in the map based on the Common ID.
• Filter Viewer - New tool to select features in the map based on a filter saved in the related Lucity module.
  • Works for Inventory and Inspection modules, as well as for Requests, Work Orders, and PMs.
  • The results are selected and zoomed to in the map.
• Subset Manager - New tool to load, create and edit Lucity subsets in the active ArcGIS Pro map.
• Relates - Adds option to attach all selected records (assets, xy, address locations) in the map to a Work Order or PM.
• Process Log - Most recent entries are displayed at top and include timestamp.
• Both Dark and Light themes are now fully supported.

Lucity Admin > GIS Services

• New option to specify credentials to geocoding services (for secured or fee-based services).

Lucity Web > Admin Portal > GIS Scheduled Tasks

• Will now only load up the amount of records specified with the Max Tasks To Load system setting. This improves performance.
• A new option has been added to purge all log entries.

Security Changes

• GIS Setup - New permission added for use in a future release

REST API

Third Party Authentication

Adds the ability for third-party developers to use OAuth to log into our Rest API using a JWT token.

Note: A guide will be coming out soon for how to use this new REST API functionality. We will continue to support the older basic authentication at this time as well.

Coordinate Properties

Renamed the following coordinate properties

Mobile Server

Improves authentication methods. This requires the following new apps to be downloaded:

• Lucity Mobile Android (2.7 Build 29)
• Lucity Mobile iOS (2.2)
• Lucity Mobile Warehouse (2.3)

Report Server

Report Server architecture is now only accessed by Lucity Mobile Server, Lucity Services or Lucity Web. Users' individual browsers no longer need to be able to talk directly to the Lucity Report Server.
