1. Select a Sewer, Storm, or Water Pipe in the map.
2. Click the Split tool on the Lucity Tools toolbar.

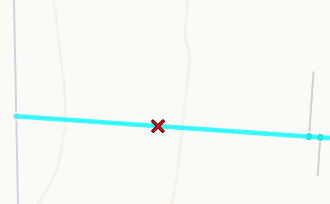

3. Using the mouse, click the position on the line at which the Line should be split. (The pointer should automatically snap to the line.) If the Structure that will split the Line already exists in the structure feature class, snap the split cursor to the Structure.



   Note: If you click on an existing split feature that intersects with the Line, the tool will attempt to use that feature as part of the split.

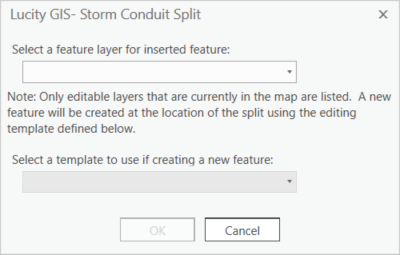

4. If more than one feature class for assets that can split lines (structures, nodes, valves, etc.) exists in the map and is editable, the following dialog appears. Select the feature class that will contain the feature added at the split.



5. Once you have selected the type of asset that to create, you can select an editing template to use when the feature is added.

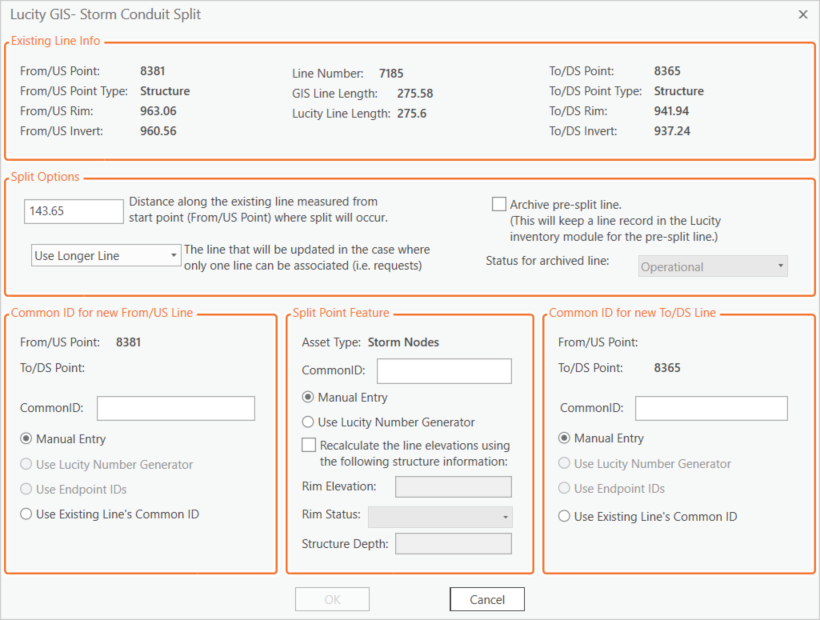

6. Click OK. The Sewer Split form appears:



   • The three sections at the top of the form display information about the existing From/US Point, Line, and To/DS Point
7. The system automatically calculates the Distance along the existing line measured from start point ... field based on the point you clicked on the line to split it. Adjust the location, if desired.
8. To retain a record in the Pipe Inventory for the Pipe as it was before the split, enable the Archive Pre-split Line option and set a Status for the archived Line.
   • Historical records that were attached to the original assets are still connected to the archived assets.
   • Current records (like PMs) will be connected to the resulting Pipes.
   • The archived Line cannot be shown in the map.
   • Users will no longer be able to create Requests, Work Orders or PM/Work Templates for the archived Line.
9. If you choose not to archive the original Pipe, certain historical records cannot be attached to both resulting Pipes (e.g., Work Requests). If applicable, choose which Pipe you prefer to attach the historical records to using The line that will be updated in the case where only one line can be associated option field.
10. In the Common ID for US/From Line section, choose whether to:
    • manually enter a Common ID for the new Upstream Line;
    • allow Lucity to auto-number the line using a Lucity Number Generator (enabled only when the option is set up in the Geodatabase Configuration tool);
    • Use the End Point IDs; or
    • Use the existing Line's Common ID.
11. In the Split Point Feature section, assign a Common ID to the new Structure by manually entering the ID or by allowing Lucity to auto-number the structure using a Lucity Number Generator (enabled only when the option is set up in the Geodatabase Configuration tool).

    Note: If a Structure already exists at the point along the line where the split is performed, the Split Point Feature section is disabled. Instead, Lucity displays the existing Structure information.

12. To enter Elevation and Depth information for the split feature, check the Recalculate the line elevation using the following structure information option.
    • Enter the Rim Elevation.
    • Set the Rim Status.
    • Enter the Structure Depth.
13. In the Common ID for DS/To Line section, choose whether to:
    • manually enter a Common ID for the new Downstream Line;
    • allow Lucity to auto-number the line using a Lucity Number Generator (enabled only when the option is set up in the Geodatabase Configuration tool);
    • Use the End Point IDs; or
    • Use the existing Line's Common ID.

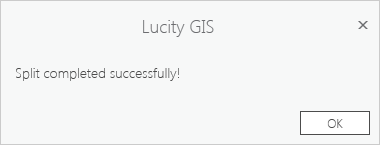

14. After making all selections, click OK. The following message appears when the process is complete:



1. Make sure the street intersection feature class is in the map. This is required for splitting street segments.
2. Select a Street Segment in the map.
3. Click the Split tool on the Lucity Tools toolbar.
4. Using the mouse, click the position on the line at which the street should be split. (The pointer should automatically snap to the line.)

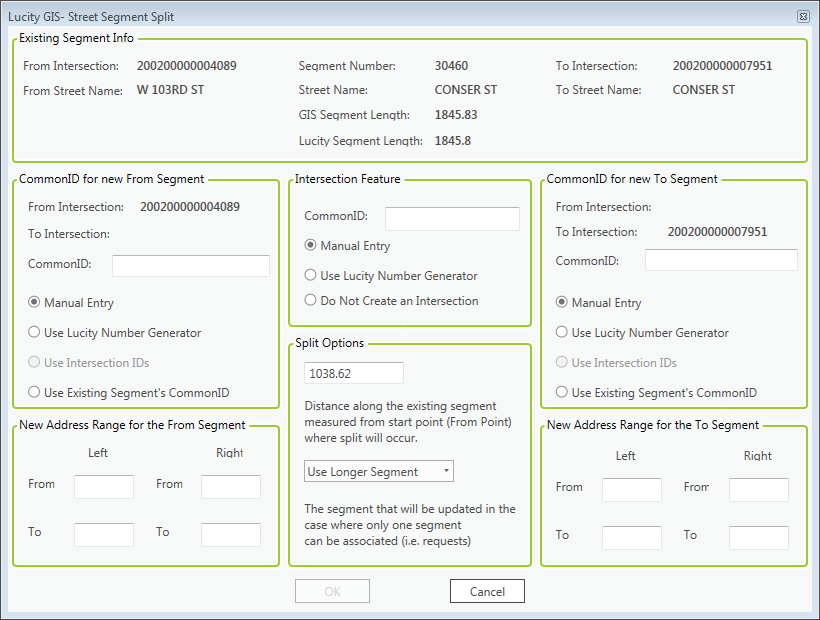

5. The Street Segment Split form appears:



   • The section at the top of the form displays information about the existing segment.
6. In the Common ID for new From Segment section, choose whether to:
   • manually enter a Common ID for the new From Segment;
   • allow Lucity to auto-number the segment using a Lucity Number Generator (enabled only when the option is set up in the Geodatabase Configuration tool);
   • Use the Intersection IDs; or
   • Use the existing Segment's Common ID.
7. In the Intersection Feature section, assign a Common ID to the new intersection by Manually Entering the Common ID or by using a Lucity Number Generator or select to Not Create an intersection.
8. In the Common ID for new To Segment section, choose whether to:
   • manually enter a Common ID for the new To Segment;
   • allow Lucity to auto-number the segment using a Lucity Number Generator (enabled only when the option is set up in the Geodatabase Configuration tool);
   • Use the Intersection IDs; or Use the existing Segment's Common ID.
9. Enter the New Address Ranges for the From and To segments.
10. Under the Split Options the system automatically calculates the Distance along the existing segment measured from start point ... field based on the point you clicked on the segment to split it. Adjust the distance, if desired.
11. After making all selections, click OK. The following message appears when the process is complete:



1. Make sure the street intersection and segment feature class is in the map. This is required for splitting street subsegments.
2. Select a Street Subsegment in the map.
3. Click the Split tool on the Lucity Tools toolbar.
4. Using the mouse, click the position on the line at which the street subsegment should be split. (The pointer should automatically snap to the line.)

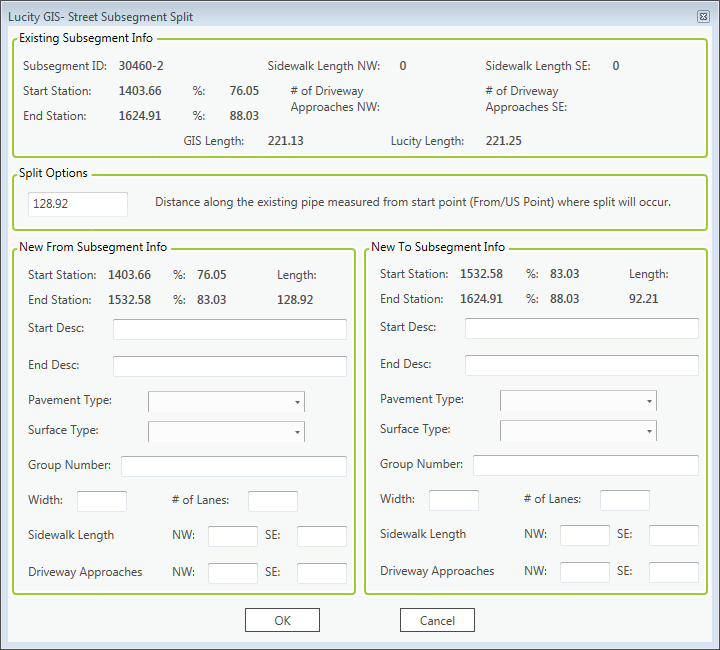

5. The Street Subsegment Split form appears:



   • The section at the top of the form displays information about the existing subsegment.
6. In the New From Subsegment Info section, enter any desired attribute information about the from subsegment.
7. In the New To Subsegment Info section, enter any desired attribute information about the to subsegment.
8. After filling out the needed information, click OK. The following message appears when the process is complete:



1.  Select a Fiber Optic Cable in the map.
2. Click the Split tool on the Lucity Tools toolbar.
3. Using the mouse, click the position on the line at which the Cable should be split. (The pointer should automatically snap to the line.) If the Structure that will split the Cable already exists in the fiber structure feature class, snap the split cursor to the Structure.



   Note: If you click on an existing split feature that intersects with the Cable, the tool will attempt to use that feature as part of the split.

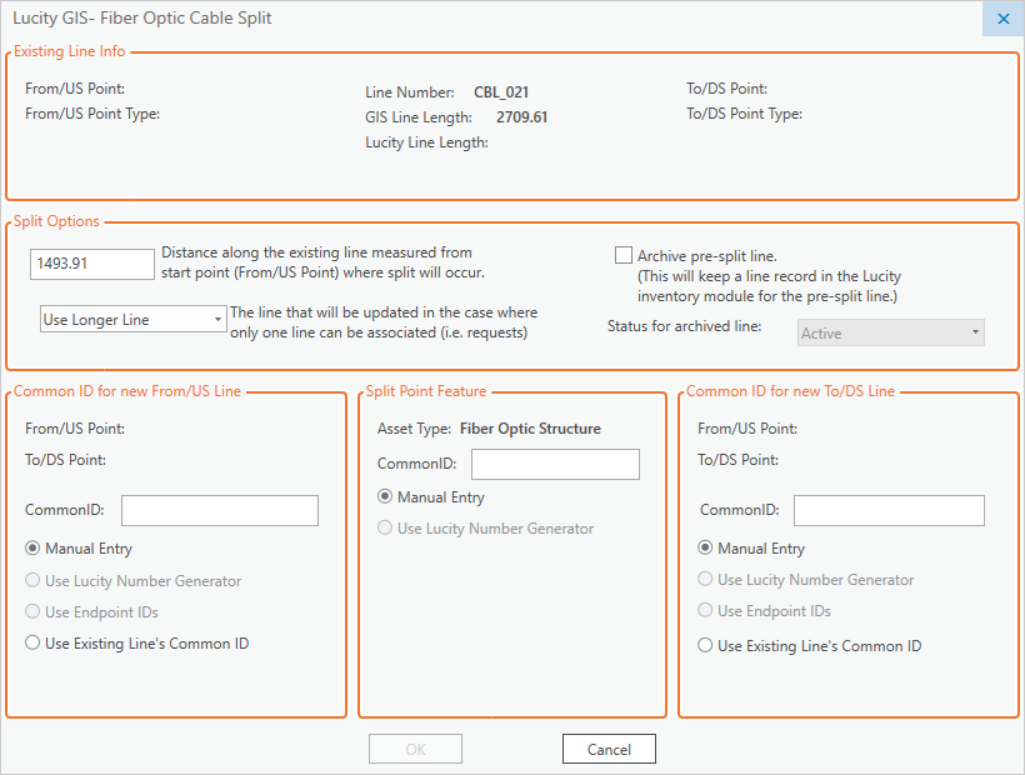

4. Click OK. The Cable Split form appears:



   • The top of the form displays information about the existing From/US Point, Cable, and To/DS Point.
5. The system automatically calculates the Distance along the existing line measured from start point ... field based on the point you clicked on the cable to split it. Adjust the location, if desired.
6. To retain a record in the Fiber Optic Cable Inventory for the Cable as it was before the split, enable the Archive Pre-split LIne option and set a Status for the archived line.
   • Historical records that were attached to the original assets are still connected to the archived assets.
   • Current records (like PMs) will be connected to the resulting Cables.
   • The archived Cable cannot be shown in the map.
   • Users will no longer be able to create Requests, Work Orders or PM/Work Templates for the archived Cable.
7. If you choose not to archive the original Cable, certain historical records cannot be attached to both resulting Cables (e.g., Work Requests). If applicable, choose which Cable you prefer to attach the historical records to using The line that will be updated in the case where only one line can be associated option field.
8. In the Common ID for new From/US Line section, choose whether to:
   • manually enter a Common ID for the new Upstream Line;
   • allow Lucity to auto-number the line using a Lucity Number Generator (enabled only when the option is set up in the Geodatabase Configuration tool);
   • Use the End Point IDs; or
   • Use the existing Line's Common ID.
9. In the Split Point Feature section, assign a Common ID to the new Structure by manually entering the ID or by allowing Lucity to auto-number the structure using a Lucity Number Generator (enabled only when the option is set up in the Geodatabase Configuration tool).

   Note: If a Structure already exists at the point along the line where the split is performed, the Split Point Feature section is disabled. Instead, Lucity displays the existing Structure information.

10. In the Common ID for To/DS Line section, choose whether to:
    • manually enter a Common ID for the new Downstream Line;
    • allow Lucity to auto-number the line using a Lucity Number Generator (enabled only when the option is set up in the Geodatabase Configuration tool);
    • Use the End Point IDs; or
    • Use the existing Line's Common ID.
11. After making all selections, click OK. The following message appears when the process is complete:



This process works for detention basins that are stored in either point or polygon feature classes.

1. Select a Detention Basin in the map.
2. Click the Split tool on the Lucity Tools toolbar.
3. Set the new geometery

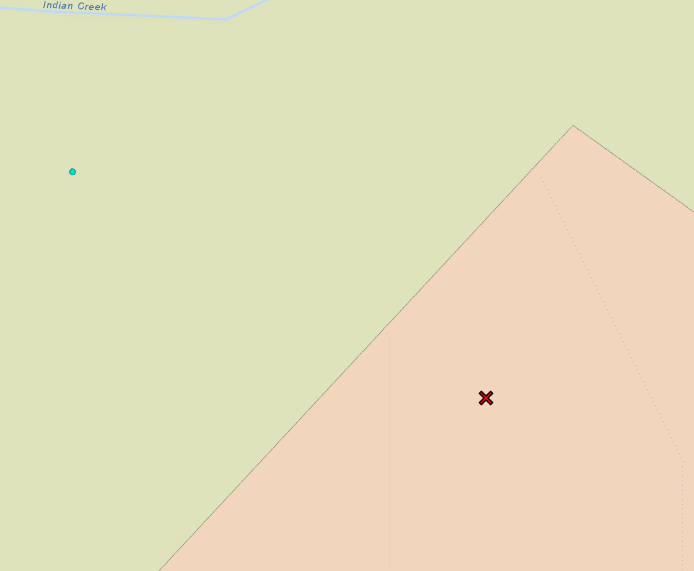

   • If the detention basin is in a point feature class use the mouse to click the position for the new detention basin point.

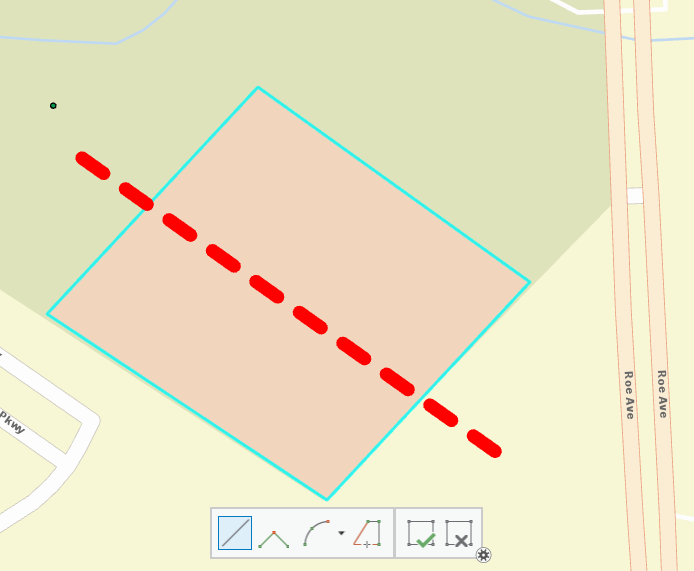

   • If the detention basin is in a polygon feature class use the mouse to click next to the polygon near where the split should occur. Drag the line accross the polygon and click on the other side to end the line. The polygon will be split along that line.

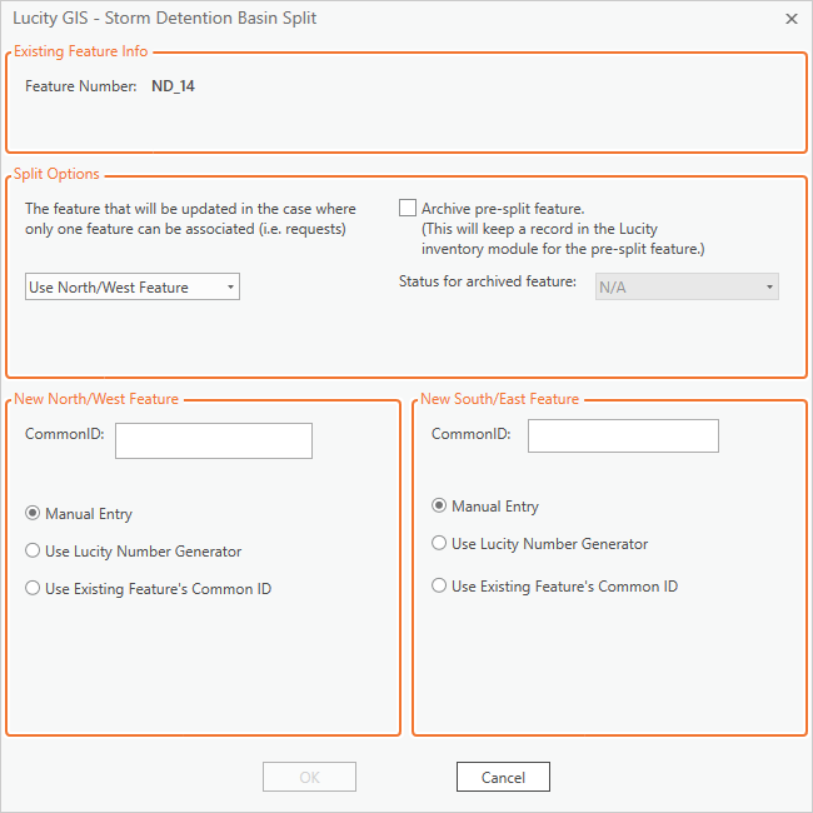

4. Click OK. The Split form appears:



   • The top section of the form identifiesthe existing feature.
5. To retain a record in the Detention Basin Inventory for the Basin as it was before the split, enable the Archive Pre-split Feature option and set a Status for the archived Feature.
   • Historical records that were attached to the original assets are still connected to the archived assets.
   • Current records (like PMs) will be connected to the resulting features.
   • The archived feature cannot be shown in the map.
   • Users will no longer be able to create Requests, Work Orders or PM/Work Templates for the archived feature.
6. If you choose not to archive the original feature, certain historical records cannot be attached to both resulting features(e.g., Work Requests). If applicable, choose which feature you prefer to attach the historical records to using The feature that will be updated in the case where only one line can be associated option field.
7. In the New North/West Feature section, choose whether to:
   • manually enter a Common ID for the feature that is the more north and west feature of the two features;
   • allow Lucity to auto-number the line using a Lucity Number Generator (enabled only when the option is set up in the Geodatabase Configuration tool);
   • Use Existing Feature's Common ID.
8. In the New South/East Feature section, choose whether to:
   • manually enter a Common ID for the feature that is the more south and east feature of the two features.;
   • allow Lucity to auto-number the line using a Lucity Number Generator (enabled only when the option is set up in the Geodatabase Configuration tool);
   • Use the existing Featuree's Common ID.
9. After making all selections, click OK. The following message appears when the process is complete:
