Street Renaming Tool

The Street Renaming Tool provides a way to quickly update a Street Name on every record in which it appears throughout the Lucity system. This feature is helpful when an agency needs to correct a misspelling or to update a street whose name has changed.

To launch the Street Renaming Tool, go to a machine that has Lucity Desktop installed on it and run the C:\Program Files (x86)\Lucity\bin\Lucity.StreetRenamingTool.exe program.

The Street Renaming Tool is automatically installed with Lucity Desktop.

Requires the Lucity App Admin permission.

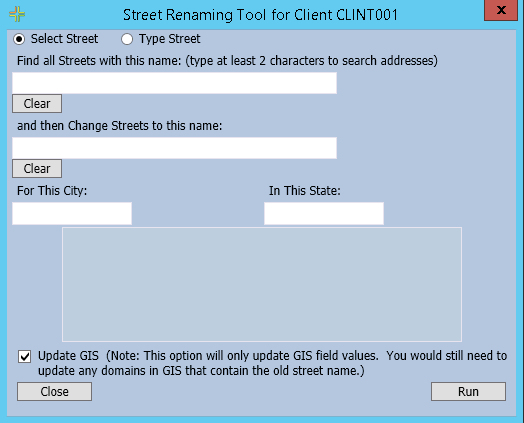

Old Street name

Select Street

Allows the administrator to select the Street Name that needs to be changed from the Street Name List. Type in the field to begin searching for a Street Name.

Type Street

Allows the administrator to type in the Street Name that needs to be changed.

Select Street To change

This section changes depending on whether the user chose to Select Street or Type Street.

Select Street

select name

Type Street

New Street name

Change Street to this name

Allows you to select the street name from the street name list that you want to change the street to. Type in the field to search for a street name.

Filtering Options

For This City

Identifies the city in which the Street is located. If records are filtered by City, the system only changes the Street Name on Address records with the specified City.

In This State

Identifies the state in which the Street is located. If records are filtered by State, the system only changes the Street Name on Address records with the specified State.

Buttons

Update GIS

Directs the system to update street address fields in the geodatabase that are linked to street address fields in Lucity.

Close

Closes the tool.

Run

Runs the tool with the current selection.

Choose whether to select a street name from the Street Name List or to type in a street name.
- Select Street - Begin to type in the street name. The tool displays a list of matching Street Names. Select one.
- Type Street - Type in the complete Street Name. The tool will only update records that match this information exactly.
Select a Street Name to replace the one identified in Step 1. Begin to type in the street name. The tool will display a list of matching street names. Choose one.
Enter the City and State, if desired. If the user provides this information, the system filters the street records to only update those with matching City or State values.
Mark whether to update the Street Name in the GIS, as well.

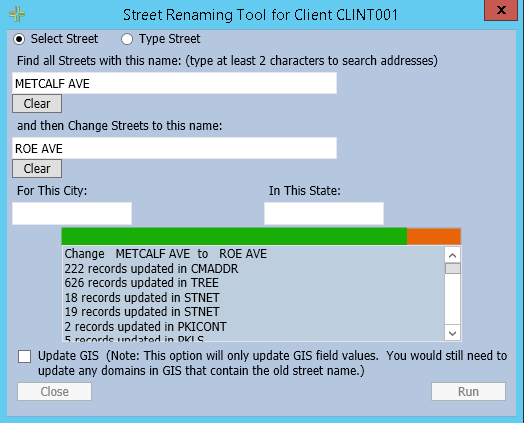

Click Run. The program indicates the number of records that were updated in each table.
Click Close when complete.
