Frame Sequence

In the Lucity Web Dashboard, frames are organized based on their Width and selected Sequence.

• Frames are ordered left to right and top to bottom.
• As frames are displayed the system ensures that a frame will not extend past the right side of the dashboard. If a frame will extend past the edge of the dashboard it is bumped down to the next row.
• Lucity Web will use frames to fill each row. With the exception of the final row, the system will not allow a row to be partially filled unless the next frame in the sequence has a width that will not fit in the row.

  Note: The drag-and-drop frame reorder function is not currently available in 19r2. Instead, users can adjust the frame width and sequence to control frame placement.

  More information about Frame Width

Example 1

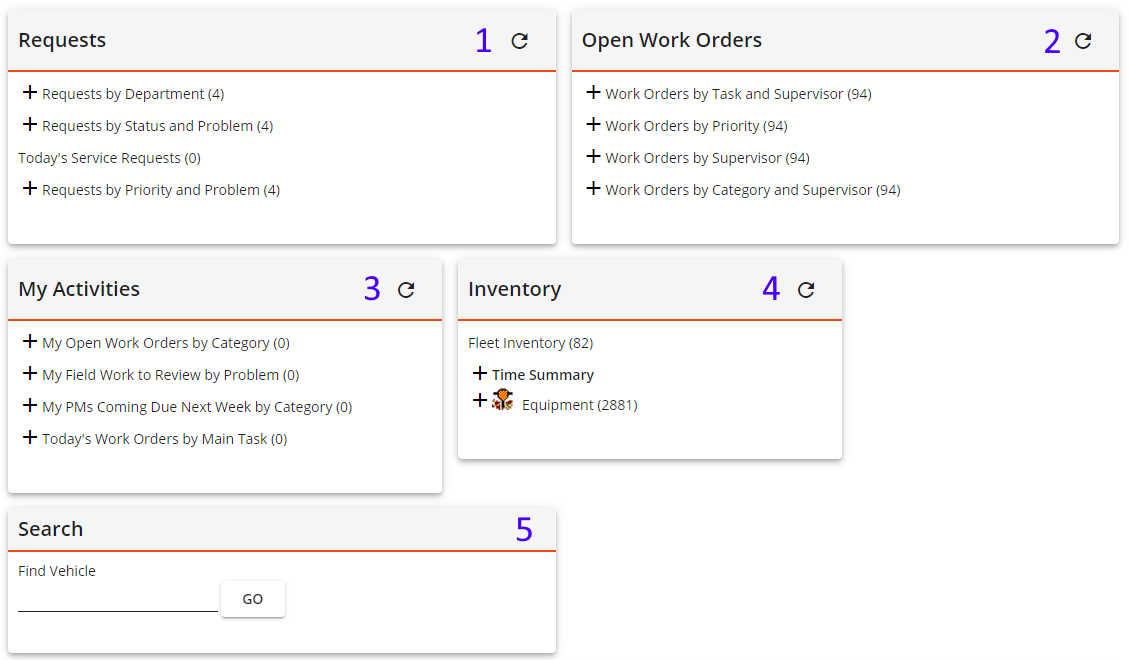

In this first example you can see each frame labeled with it's order. This dashboard:

• Displays Frame 1
• Displays Frame 2
• Doesn't have enough room to display Frame 3 so it goes to a new line.
• Displays Frame 3
• Displays Frame 4
• Displays Frame 5

Example 2

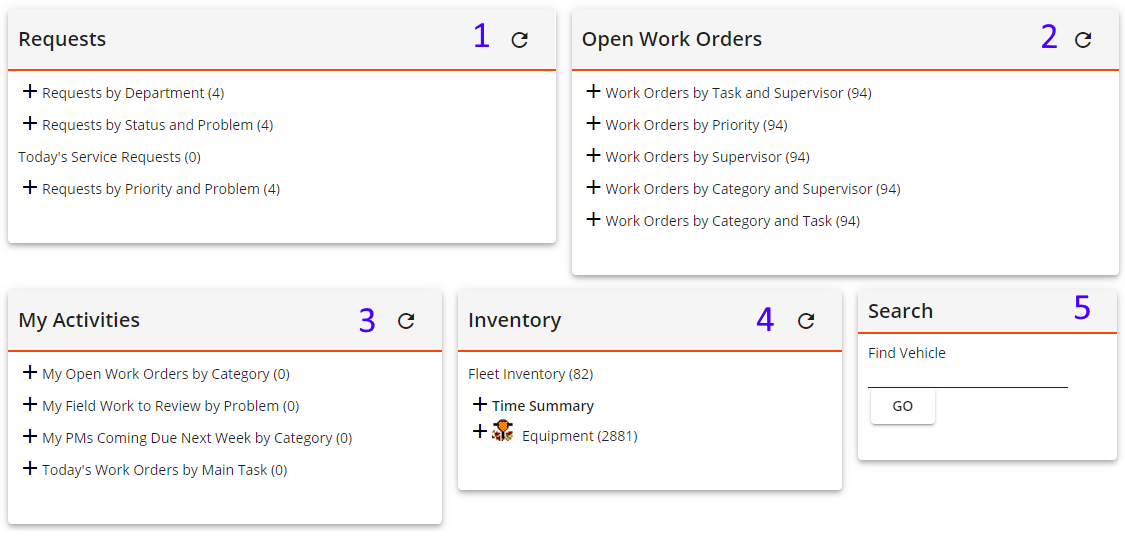

In this example the original Frame 2 is moved down to the 5th position and is now Frame 5. The other Frames renumbered accordingly. The dashboard:

• Displays Frame 1
• Displays Frame 2
• Doesn't have enough room to display Frame 3 so it goes to a new line.
• Displays Frame 3
• Displays Frame 4
• Doesn't have enough room to display Frame 5 so it goes to a new line.
• Displays Frame 5
