1. Open the module view you want to edit a form in.
2. Navigate to the grid the form is attached to and click Open next to a record to open it. *You can open any record in the grid to edit that grid's record design.

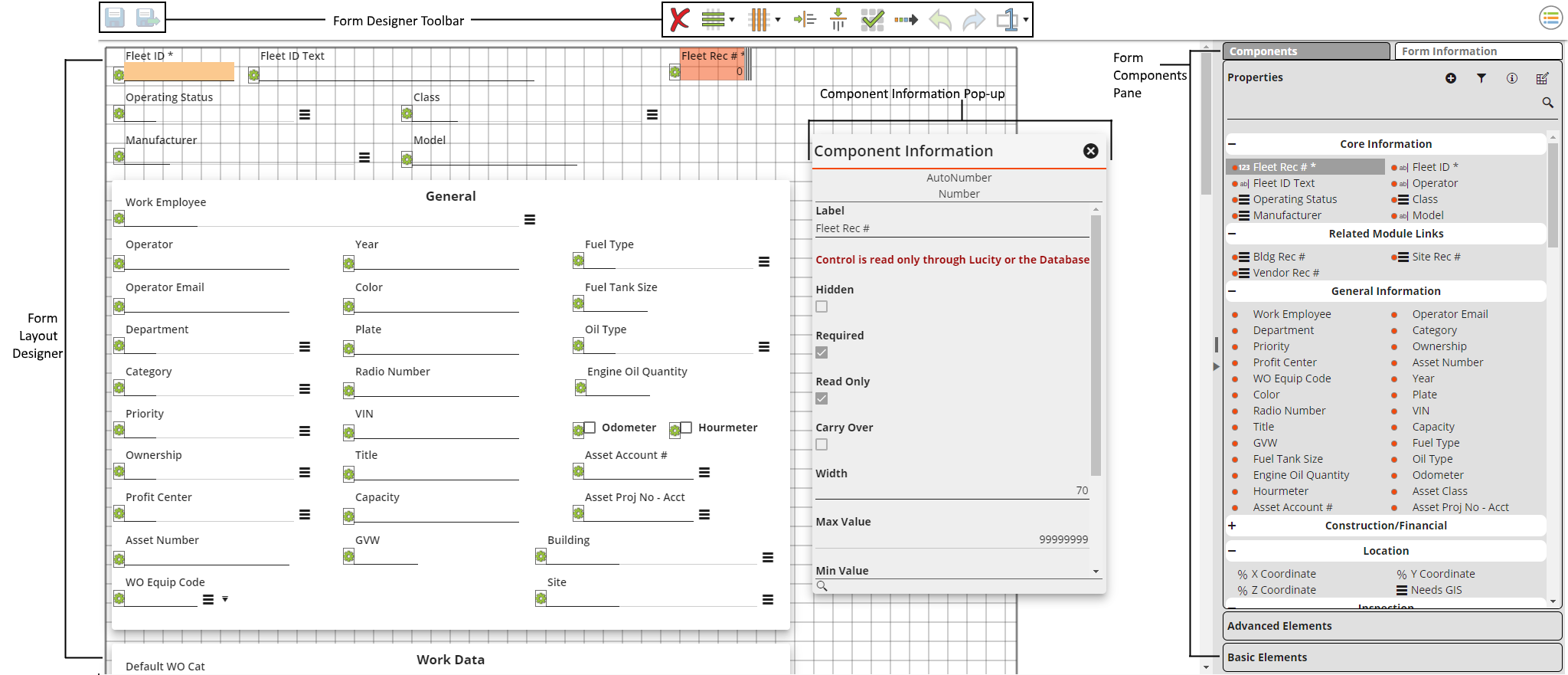

3. Click the Menu button and select Enter Design Mode. The form will open in an editable mode.
4. Make the desired edits to the form.
5. Click Save .
6. Click the Menu button and select Exit Design Mode.

Properties, Labels, Breaks

1. Click a component and drag it to a new location.
2. As you move the component around red horizontal/vertical lines may appear. This are guides to help you snap the component in line with other components.
3. Release the component at the desired position.




Frames

1. To move a frame but leave its components in place click and drag the frame to the new location.

   OR

2. To move a frame with all of its components click the frame twice to select the frame and its contents. Then click and drag the frame to the new location.
3. As you move the component around red horizontal/vertical lines may appear. This are guides to help you snap the component in line with other components.
4. Release the component at the desired position.


1. Select one or more components in the grid. Make sure that the last component you select is the one that you want the rest of the components to align with.

   Use Ctrl or Shift to select more than one component.

2. Click the button to align the selected components horizontally. he top of all selected components will be snapped to the same horizontal line, in line with the last selected component.

   OR

3. Click the button to align the selected components vertically. The left side of all selected components will be snapped to the same vertical line in line with the last selected component.

1. Select one or more components in the layout window. Make sure that the top left component you select is the one that you want the rest of the components to align with.

   Use Ctrl or Shift to select more than one component.

2. Click the button to align the selected components into a grid.
   • If the icon is toggled they will all appear in a line to the right of the upper left selected component. If the components reach the right edge of the form they will start a new line of components below the first line.
   • If the icon is toggled they will all appear in a column below the upper left selected component.

1. Select a component in the list.
2. If the component can be resized then lines will appear around the component in the direction that the component can be resized. Break, Label, and Checkbox Properties cannot be resized.
3. Click and drag the control lines to change the component's size.


1. Select the field with a tab order immediately preceeding the field(s) that need their tab order modified.
2. Hold down the CTRL field and click on the field that should follow the first field in tab order. This field can be anywhere on the form.
3. Continue to hold down the CTRL field and click through more fields. The fields will be reordered based on the order clicked on.
