Dashboard

The Dashboard, which is conveniently located under the Home tab, provides an overview of relevant data and reports from several Lucity modules. It helps users:

make informed decisions;
quickly access the forms and resources they use most often on the job; and
determine which module they wish to view and then drill-down to more detailed information.

Additionally, the Dashboard can be easily customized for an individual user or groups of users using controls integrated into the Dashboard interface.

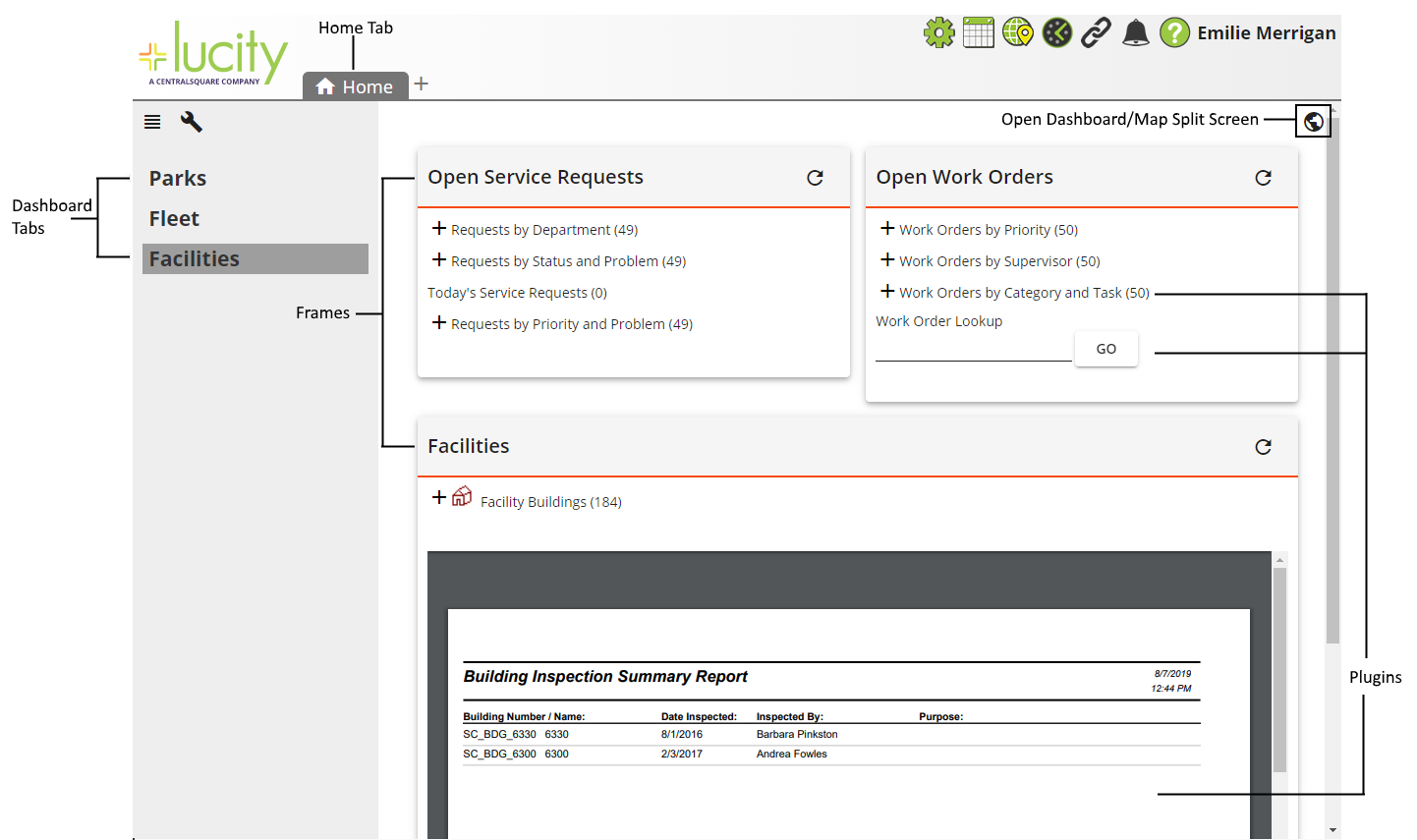

Dashboard Image

Dashboard Elements


Component		Description
Dashboard Tabs		A set of related data elements made available through the Dashboard. Tabs can be customized for each user and appear on the left side of the screen. Click a tab to view the frames and plug-ins associated with that dashboard tab. Expands and collapses the dashboard tab list to provide more screen space. Enables users to Enter Design Mode. More information about Dashboard Setup
Frame		An area on the dashboard that contains a plugin. More information about Frame Setup
Plugin		A software component used to display data within a frame on the dashboard. Lucity Web implements several types of plugins. More information about Plugin Setup
	Dashboard/Map Split Screen	The Dashboard/Map Split Screen button allows users to activate the Dashboard/Map Split Screen to have a split view pane of the Web Map and the Dashboard. *Note: This feature is only active for users who use the map and have a GIS web license. More information about Dashboard/Map Split Screen Setup
