View Street Modeling Results

The View Street Modeling tool has some extra functionality that the other Lucity View Tools do not.

Make sure your Street Segment, Street Subsegment, and Street Supersegment features classes are in the map.
In the Lucity Analayst Toolbar select Lucity Views > Street > View Street Modeling results. The following pop-up will appear:
Use the drop down to select a pavement model.
Select whether you want the results to be display by Subsegment or Supersegment.
Click OK.
The results will be loaded in the map with the years of the model results grouped into layers.

If your results are displayed by supersegment there are added right-click functions.
In the Lucity Analayst Toolbar select Lucity Views > Street > View Street Modeling results to make sure the tool is enabled.
Right-click on a result in the map or select multiple results and right-click. The following options will appear:

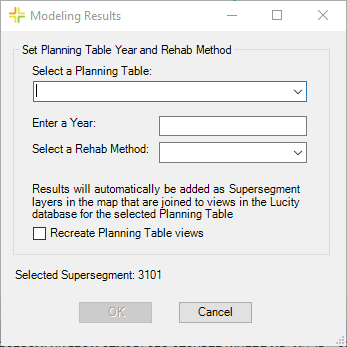

Select whether to add the supersegment(s) to a Planning Table on a specific year, add the supersegment to the planning table with a rehab method, or both. After making a selection the following popup will appear. This pop-up is for the Set Planning Table Year and Rehab Method option.
Fill out the form options.
- Planning Table: the Supersegment Planning Table that will be written to and have its results displayed in the map.
- Year: the Year to Work that each Supersegment will have in the Planning Table.
- Rehab Method: the Rehab Method that each Supersegment will have in the Planning Table.
- Recreate Planning Table views: this recreates the Planning Table views in the Lucity database..
Click OK.
The results of this change will be added to the map. The results are symbolized by Rehab Method.
