Lucity ArcGIS Pro Extension

1. Find the extension file (LucityArcGISPro.esriAddInX). It is included in the /bin folder of your Lucity Desktop install.

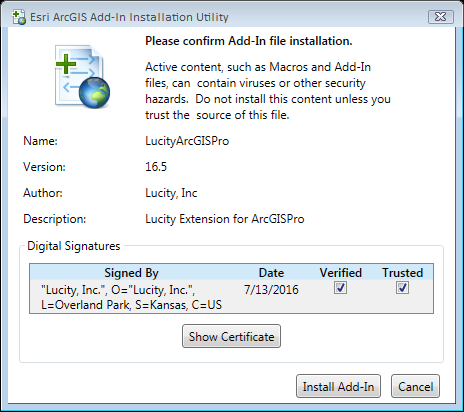

2. Double click on the file. The following screen will appear:



3. Click Install Add-In. The extension will install and you will be prompted with it is complete.



4. Click OK to close the window.

   Note: This will only install the extension for the currently logged in user.

This step must be done the first time you use the Lucity extension.

1. Click the Lucity Tools tab in ArcGIS Pro.
2. Click on one of the Lucity tools.

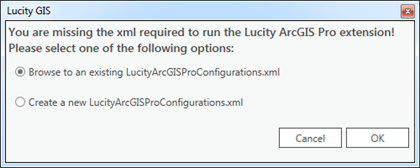

3. The following pop-up will appear the first time you use one of the tools:



4. If you have previously created the XML file with the connection information select Browse to an existing LucityArcGISProConfigurations.xml option.

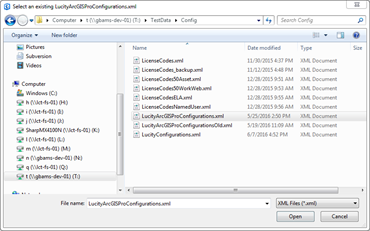

   • If you select this option click OK. The following browse windows will open



   • Browse to the LucityArcGISProConfigurations.xml file, select it, and click Open.
5. If this is the first machine you have configured for a particular Lucity Client select Create a new LucityArcGISProConfigurations.xml option.

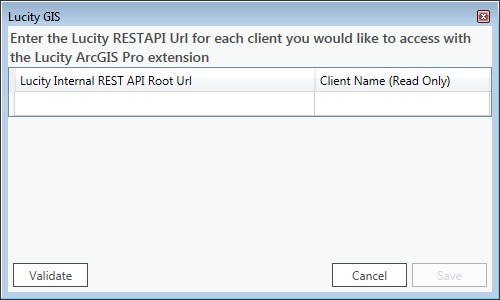

   • If you select this option click OK. The following pop-up will appear:



   • Enter the path for Internal REST API. You can enter multiple URLs for multiple clients.
   • Click Validate. The Client Name will be filled out if it is a valid client.
   • When you are done click Save.

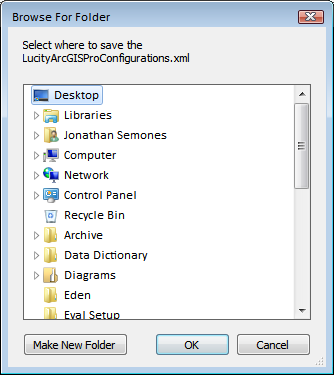

   • Select the location that you would like to save your .xml file. If you have more than one machine with ArcGIS Pro you can save it to a network location and then use it for other machines in the future.
   • Click OK.

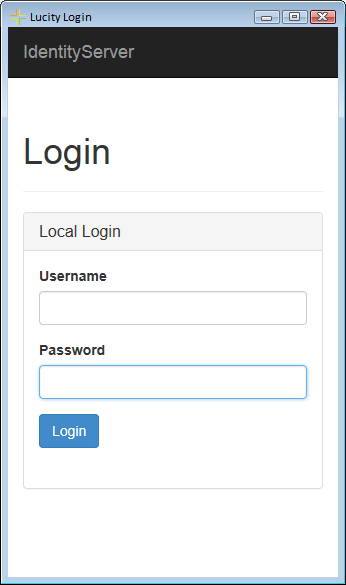

   • You will be asked to login the the Lucity Identity Server.
