The installation of GIS Server Object Extension for ArcServer must be performed in ArcServer Manager.
Requirements
.NET Framework 4.5.2 (Full)
ArcGIS 10.1
ArcServer manager
Lucity 7.3 sp1 or above
When upgrading to ArcGIS 10.1, agencies that use the Lucity Webmap must manually install the Lucity SOE (Server Object Extension). In previous versions, the SOE was installed through the Setup.exe provided with the Lucity install media. Due to changes in ArcGIS 10.1, the SOE must be manually added through ArcServer Manager.

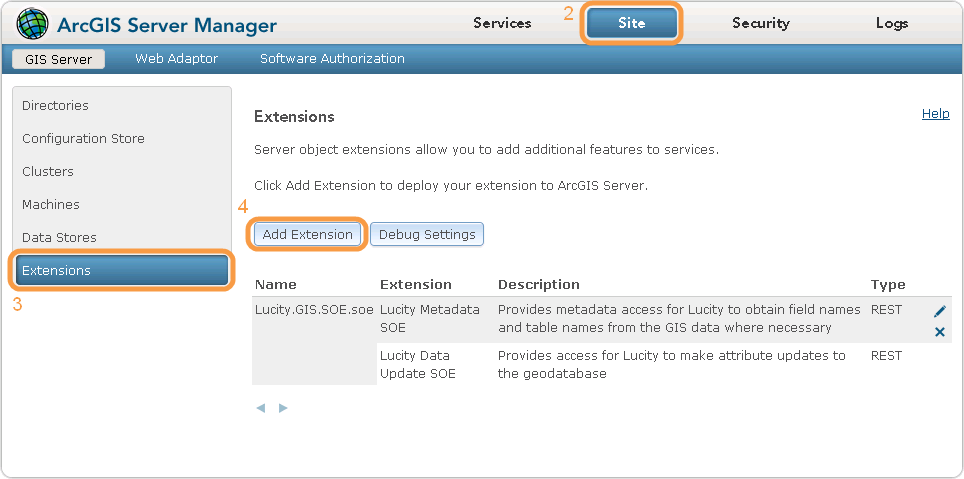

Select Add Extension. The file selection screen will pop up.

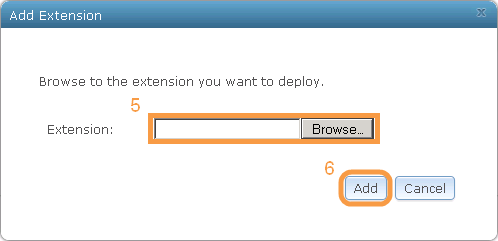

Click Browse and navigate to the Lucity SOE file within the install media. It is located in the install media at ..\MSI\Web\LucityGISSOE_ArcGIS10.1\.
Click Add. The SOE is now installed.
If your organization allows Lucity Desktop or Lucity Web to update the SDE geodatabase, make sure the Lucity Data Update SOE is activated on your update service.
The Lucity Metadata SOE is no longer used for the Lucity Webmap. It does not need to be enabled for any services.

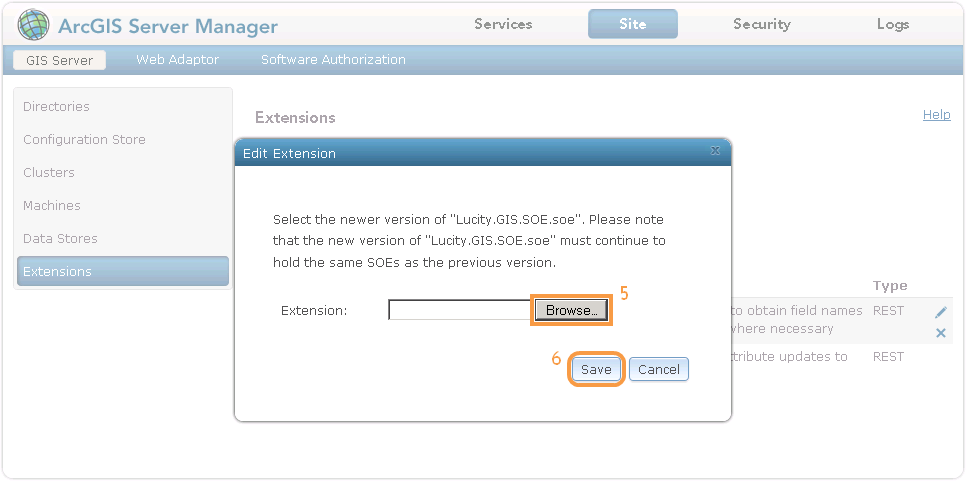

Find the Lucity.GIS.SOE.soe extension. Click the Edit button to the right of it (it looks like a pencil).
Click the Browse button and navigate to the Lucity SOE file within the install media. It is located in the install media at ..\MSI\Web\LucityGISSOE_ArcGIS10.1\.
Click Save. The SOE is now upgraded.
If your organization allows Lucity Desktop or Lucity Web to update the SDE geodatabase, make sure the Lucity Data Update SOE is activated on your update service.
Note: The Lucity Metadata SOE is no longer used for the Lucity Web Map. It does not need to be enabled for any services.
Install the Server Object Extension
