Point Lucity to the Map Service

After publishing the map service and enabling the SOE there are several options that must be reviewed inside the Lucity Administration tool.

Connection string

1. Collect map service url

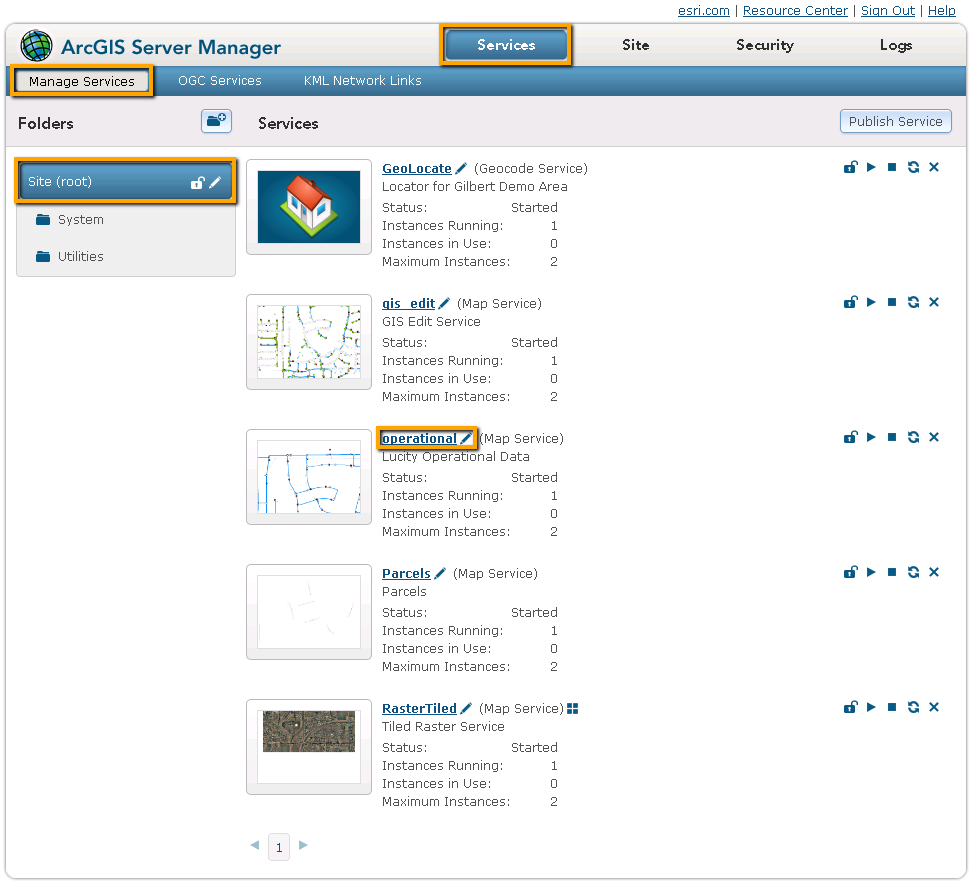

   1. Log into Arc Server Manager and click on Services > Manage Services.



   2. Find a map service to use
   3. Click on the map service to see its properties.
   4. Click on the Capabilities button.
   5. Copy down the REST URL. It should have a path similar to this: http://<server name>/ArcGIS/rest/services/<service name>/MapServer
2. In the Lucity Administration tool go to GIS > Connection Strings.
3. Find the record named DEFAULT and put the URL collected in step 1 into the URL field.
4. Clicking in a different field will save the change.

   Note: For more information about this screen go here.
