Renumber Water Feature

The Lucity GIS Edit tools include a tool for renumbering water structures.

Note: This tool is only enabled if there is one feature selected in the map.

How To Renumber a feature

1. In ArcMap, start an edit session.
2. Select a water feature in the map.
3. Click the Water Renumber tool on the Lucity GIS Edit Toolbar.

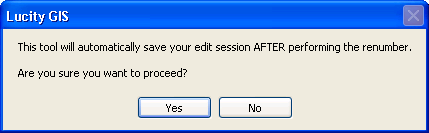

4. The renumber tool requires that edits be saved before and after performing the renumber. One of the following prompts will appear.

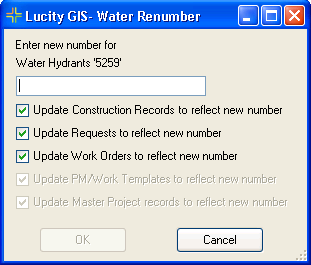

5. Click Yes and the following dialog will appear.



6. Enter the new number and select OK.
7. The following message will appear when the renumber process is finished.
