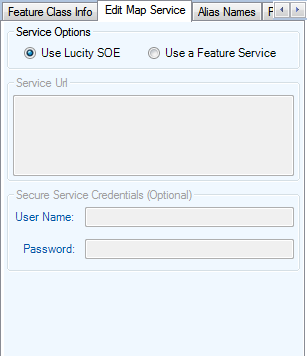

Edit Map Service Tab

This tab is enabled for feature classes that are linked to inspection modules. It controls how a scheduled task's moves Lucity data into the geodatabase with inspection information.

Service Options

The user is allowed to select which service will be used by a scheduled task to update the inspection feature class. This service must include the inspection feature class that will be updated.



Use Lucity SOE

This causes the task to use the Edit Map Service found on the Connection Properties to connect to and update the inspection feature class.



Use a Feature Service

This causes the task to use a Feature Service to update the inspection feature class.

Service URL

This is enabled if the Use a Feature Service field is selected. Enter the URL for the Feature Service.

Secure Service Credentials

These fields allow users to specify credentials for the map service if it is a secured service.



User Name

A login for the secure service.



Password

The password for the user name.
