Configuring the Esri World Geocoding Service

Since usage of the Esri World Geocoding Service has the potential to use credits, starting with 2019r2 you must provide Lucity with the credentials to a user in your ArcGIS Online organization that has permissions to use credits. Lucity will use those credentials to obtain a token that can be used with the Esri World Geocoding Service to perform operations that are not considered free. Note: You must upgrade to version 2019r2 to complete the following steps.

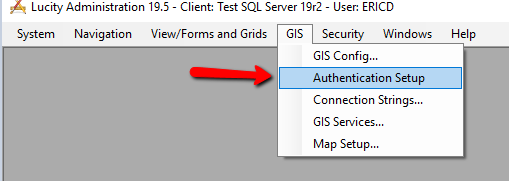

1. In the Lucity Administration tool, go to GIS>>Authentication Setup…

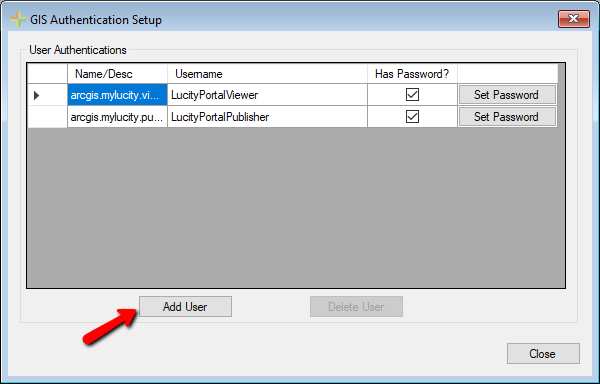

2. On the GIS Authentication Setup dialog, click Add User.



3. Provide a description for the credential, populate the username, and set the password.

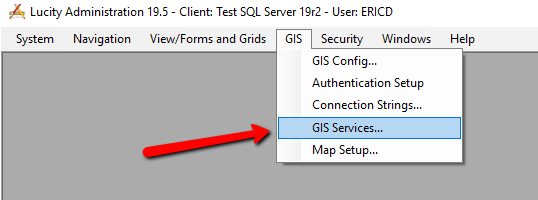

4. After you save the credentials to your ArcGIS Online organization go to GIS>>GIS Services…

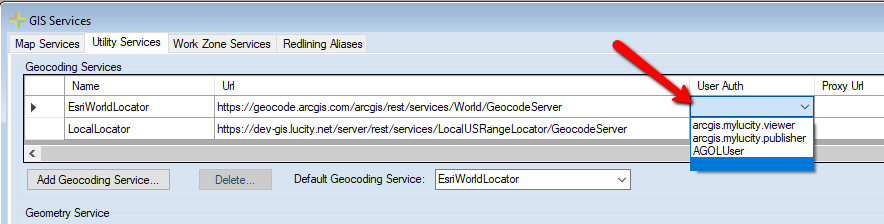

5. On the GIS Services dialog, navigate to the second tab, Utility Services, and populate the User Auth field for the Esri World Geocoding Service record using the credentials you created in the previous step from the dropdown list.



6. Click Save.
